Koneo - P61
Aluminum LED profile
LED Profiles
External aluminum LED profile for base
Typology
External
Installation
Drawer
Certifications
Product details

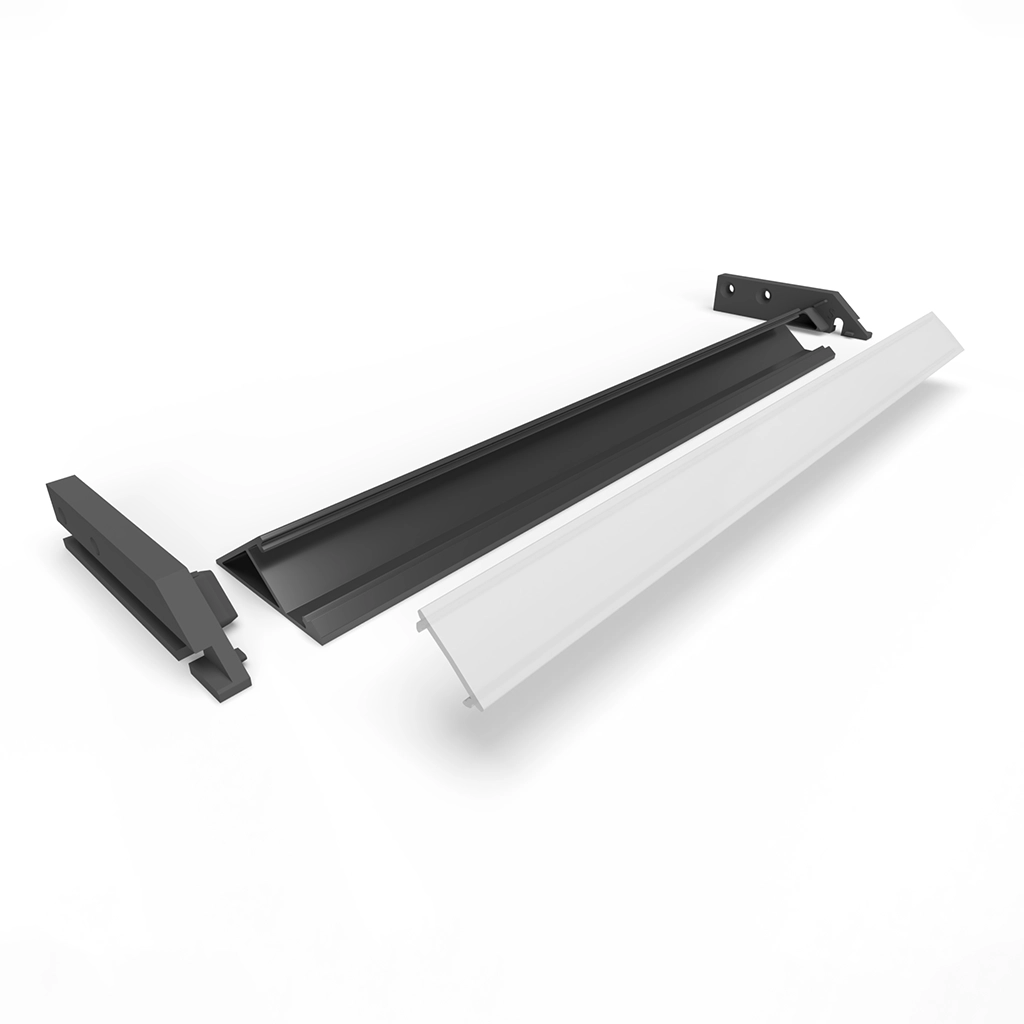

LED profile | Koneo - P61: external aluminum profile
The Koneo - P61 LED profile is designed for external applications specifically for bases and drawers. With dimensions of 34 mm x 14 mm, this aluminum profile offers powerful, high-quality lighting. It is compatible with accessories such as caps and supports several lighting options, including touch and presence detectors. Available in aluminum and black, the Koneo P61 is UL Listed, CE, UKCA, RoHS, and CL3 certified, ensuring high standards of safety and quality. The length is customizable according to design requirements.

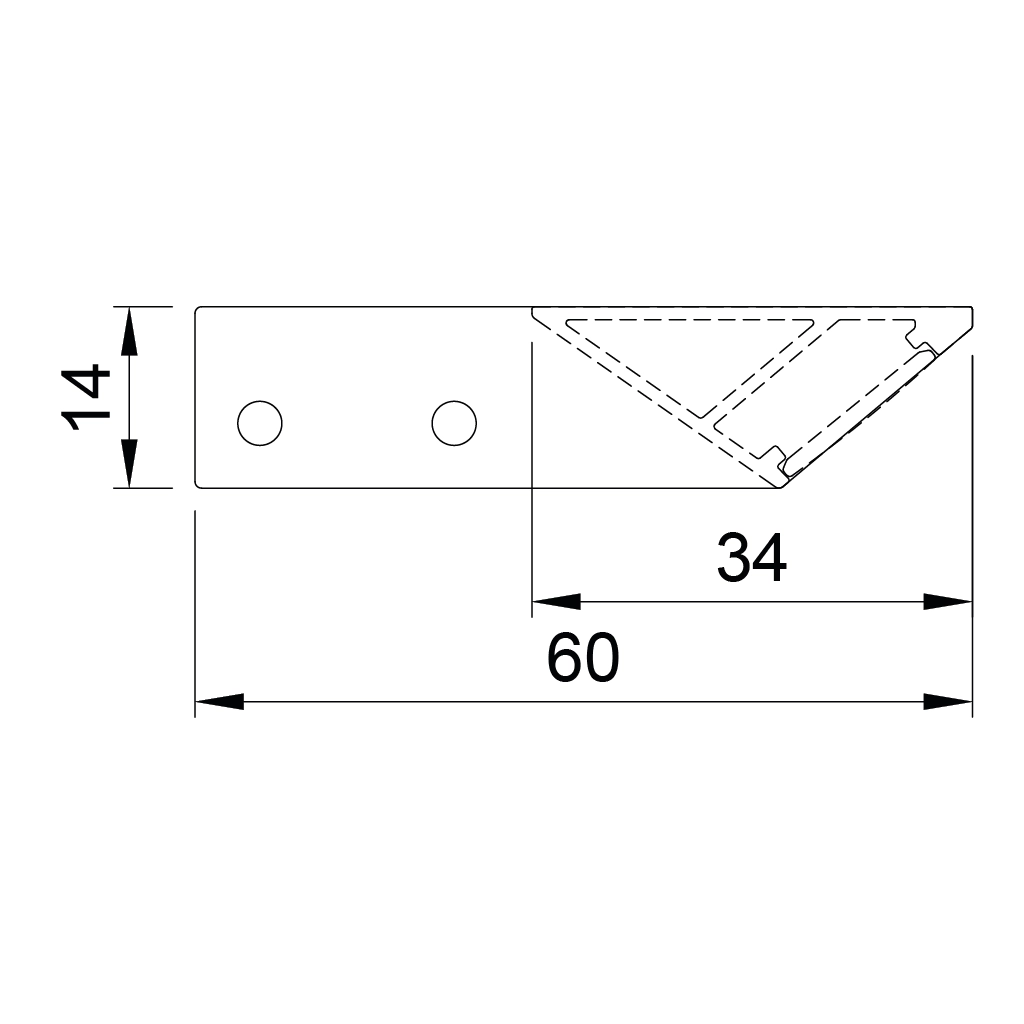

Dimensions
| Length | A misura |
| Width | 34 mm |
| Thickness | 14 mm |
Product design
| Finishes |
Aluminum
Black
|
| Screen color | White |
| Material | Aluminum |
| Product code | Width | Power | Voltage | Lumen/m (4000K) |
|---|---|---|---|---|
| ST32.12 | 9.5 mm | 15W/m | 12V | 1240 |
| ST24.5 | 5 mm | 12W/m | 24V | 1431 |
| ST32.24 | 9.5 mm | 15W/m | 24V | 1433 |
| ST25.5 | 5 mm | 7W/m | 24V | 903 |
| ST19.12 | 8 mm | 14.4W/m | 12V | 2066 |
| ST26 | 8 mm | 10W/m | 24V | 1015 |
| ST26.55 | 8 mm | 10W/m | 24V | 942 |
| ST33.12 | 8 mm | 6W/m | 12V | 711 |
| ST19.24 | 8 mm | 14.4W/m | 24V | 1993 |
| ST27.12 | 8 mm | 4.4W/m | 12V | 504 |
| ST26.12 | 8 mm | 10W/m | 12V | 1084 |
| ST22 | 8 mm | 9.5W/m | 24V | 1377 |
| ST26.1255 | 8 mm | 10W/m | 12V | 970 |
| ST33.24 | 8 mm | 6W/m | 24V | 711 |
| ST27.1255 | 8 mm | 4.4W/m | 12V | 472 |
| ST26.5 | 5 mm | 10W/m | 24V | 1084 |
| ST26.5.12 | 5 mm | 10W/m | 12V | 1076 |
| ST41 | 10 mm | 19.2W/m | 24V | 1899 |
| ST28.12 | 8 mm | 7W/m | 12V | 1122 |
| ST27 | 8 mm | 4.4W/m | 24V | 474 |
| ST41.55 | 10 mm | 19.2W/m | 24V | 1811 |
| ST23 | 8 mm | 11.7W/m | 24V | 1569 |
| ST43.24 | 8 mm | 8W/m | 24V | 1054 |
| ST23.55 | 8 mm | 11.7W/m | 24V | 1532 |
| ST27.55 | 8 mm | 4.4W/m | 24V | 490 |
| ST28.1255 | 8 mm | 7W/m | 12V | 982 |
| ST43.2455 | 8 mm | 8W/m | 24V | 776 |
| ST28.24 | 8 mm | 7W/m | 24V | 1125 |
| ST28.2455 | 8 mm | 7W/m | 24V | 961 |
| ST43.5 | 5 mm | 8W/m | 24V | 1050 |
| ST50.TW | 8 mm | 9.6W/m | 24V | 712 |
| ST29.5.12 | 5 mm | 7W/m | 12V | 792 |
| ST30.12 | 9.5 mm | 6W/m | 12V | 518 |
| ST30.24 | 9.5 mm | 6W/m | 24V | 627 |
| ST50.T23 | 8 mm | 9.6W/m | 24V | 820 |
| ST31.24 | 7.5 mm | 12W/m | 24V | 1162 |
| ST84 | 8 mm | 9.6W/m | 24V | 743 |
| ST84.65 | 9.5 mm | 9.6W/m | 24V | 801 |
| ST85 | 3 mm | 4W/m | 12V | 420 |
| ST50.TW.12 | 8 mm | 9.6W/m | 12V | 674 |
| ST86 | 5 mm | 6W/m | 12V | 627 |
| ST56.T23.24.90 | 8 mm | 11.5W/m | 24V | 1160 |
| ST50.TWNA | 8 mm | 9.6W/m | 24V | 755 |
| ST90 | 8 mm | 9.6W/m | 12V | 970 |
| ST58 | 10 mm | 7.5W/m | 24V | 600 |
| ST52 | 4.5 mm | 9.6W/m | 24V | 684 |
| ST59.TW | 5 mm | 4.2W/m | 24V | 417 |
| ST59.T23 | 5 mm | 4.2W/m | 24V | 474 |
| ST52.TW | 4.5 mm | 9.6W/m | 24V | 620 |
| ST60 | 8 mm | 9.6W/m | 24V | 257 |
| ST52.T23 | 4.5 mm | 9.6W/m | 24V | 680 |
| ST62.24 | 6.1 mm | 10W/m | 24V | 970 |
| ST63.24 | 8 mm | 9.6W/m | 24V | 675 |
| ST80 | 8 mm | 6W/m | 12V | 425 |
| ST82 | 8 mm | 15W/m | 24V | 1240 |
| ST53.RGB.12 | 8 mm | 10W/m | 12V | |
| ST83 | 8 mm | 7.2W/m | 24V | 675 |
| ST53.RGB.24 | 8 mm | 10W/m | 24V | |
| ST83.65 | 9.5 mm | 7.2W/m | 24V | 594 |
| ST53.RGB.2455 | 8 mm | 24V |
