ST86

Dimmable COB LED strip, IP20, 12V DC

Strip LED

Consistent and versatile lighting, variable brightness: 590 lumens/m at 2700K, 589 lumens/m at 3000K, 627 lumens/m at 4000K and 621 lumens/m at 5500K.

Typology

COB

Certifications

Product details

LED strip ST86 - COF 12V DC

The ST86 LED strip is ideal for environments that require uniform and versatile lighting with COB technology. With a 12V DC power supply, it offers 6W/m power and variable brightness: 590 lumens/m at 2700K, 589 lumens/m at 3000K, 627 lumens/m at 4000K, and 621 lumens/m at 5500K. Featuring a CRI higher than 90, this LED strip is IP20 rated and CE, UKCA and RoHS certified.

Dimensions

Height	1.9 mm
Width	5 mm
Reel	10 m
Length of cutting module	8 mm

Technical specifications

Power	6W/m
Voltage	12V
LED/m	528
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	590	98
>90	3000K	589	98
>90	4000K	627	105
>90	5500K	621	104

Technical data sheet

st86 datasheet

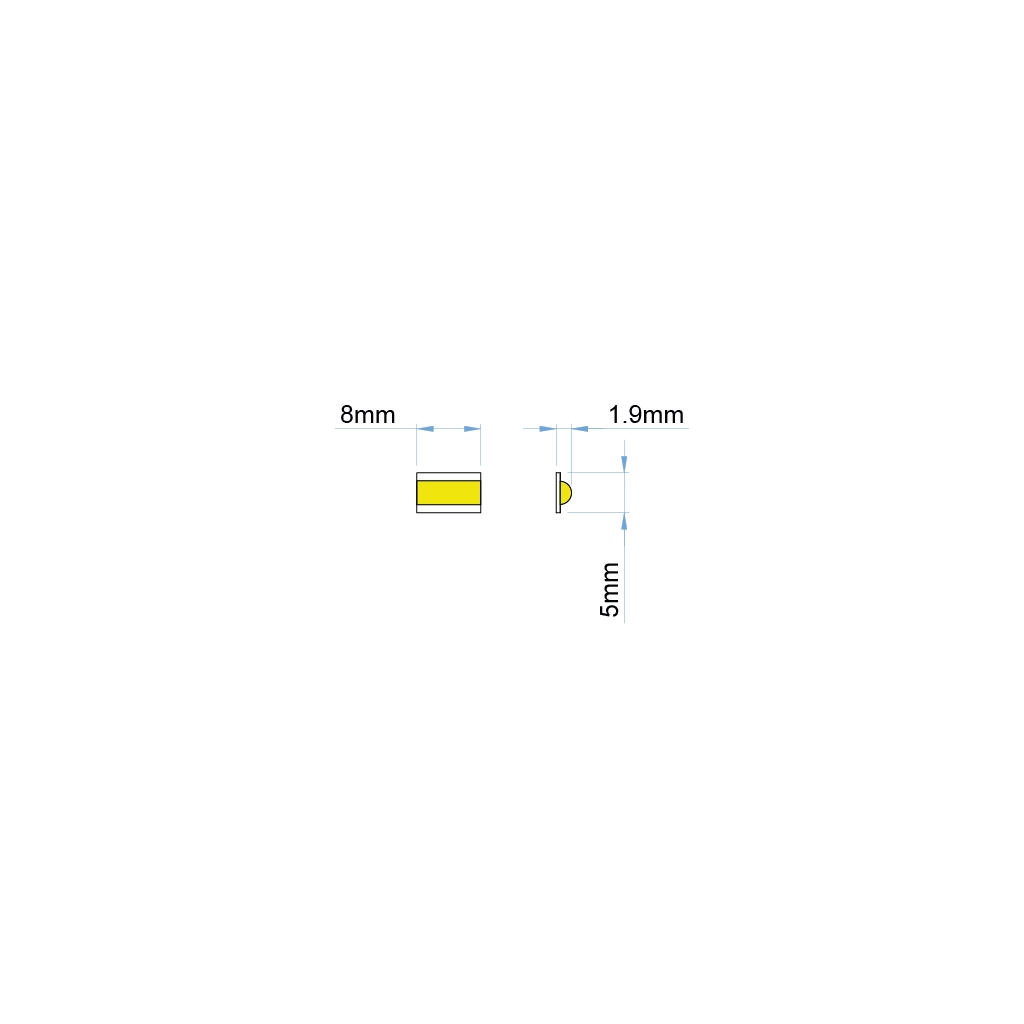

Technical drawing

st86 technical drawing
