ST83

Dimmable COB LED strip, IP20, 24V DC

Strip LED

Consistent and versatile lighting, brightness ranging from 825 to 875 lumens per meter.

Typology

COB

Certifications

Product details

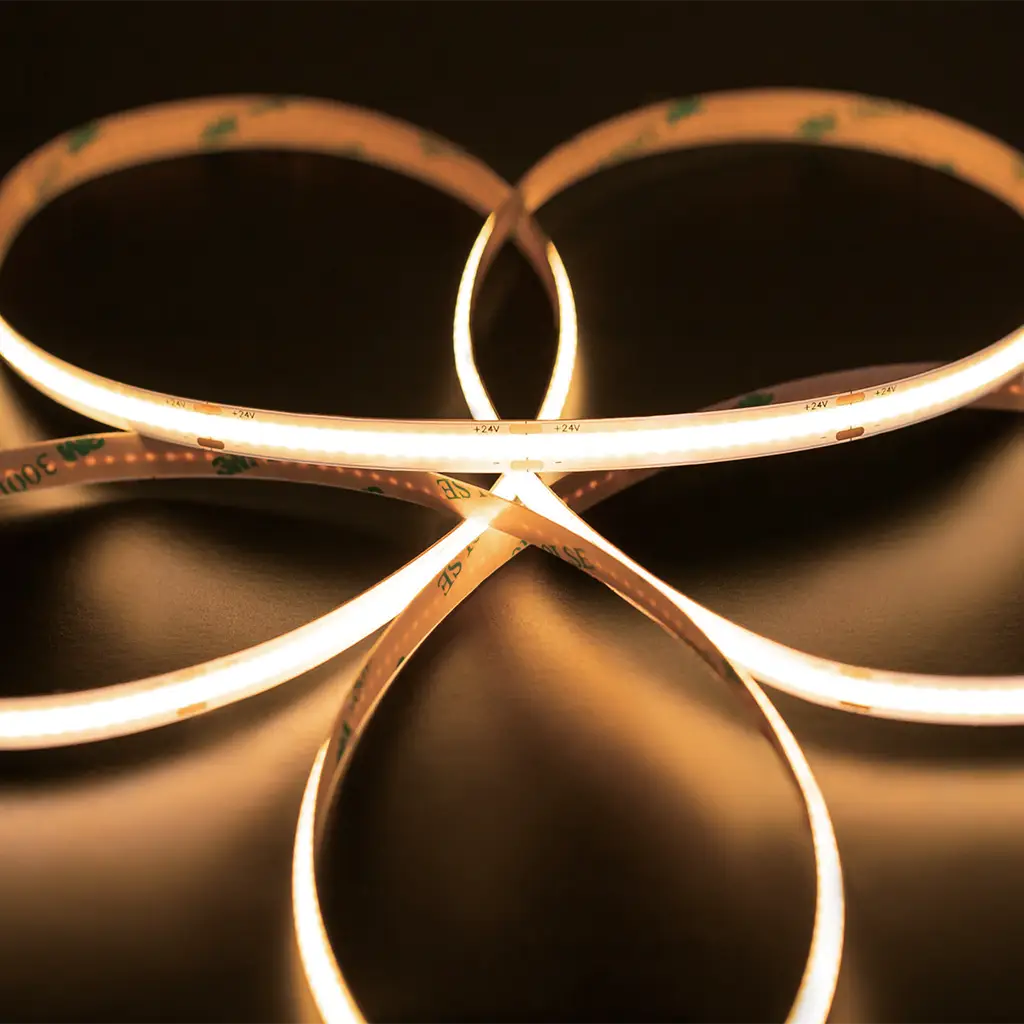

LED strip ST83 - COF 24V DC

The ST83 is an LED strip designed to provide uniform and versatile lighting with COB technology. With a 24V DC power supply, it offers brightness ranging from 825 to 875 lumens per meter and a luminous efficiency of 10W/m. The LED strip has a CRI of more than 90 and an IP20 rating. UL Listed, CE, UKCA and RoHS certified.

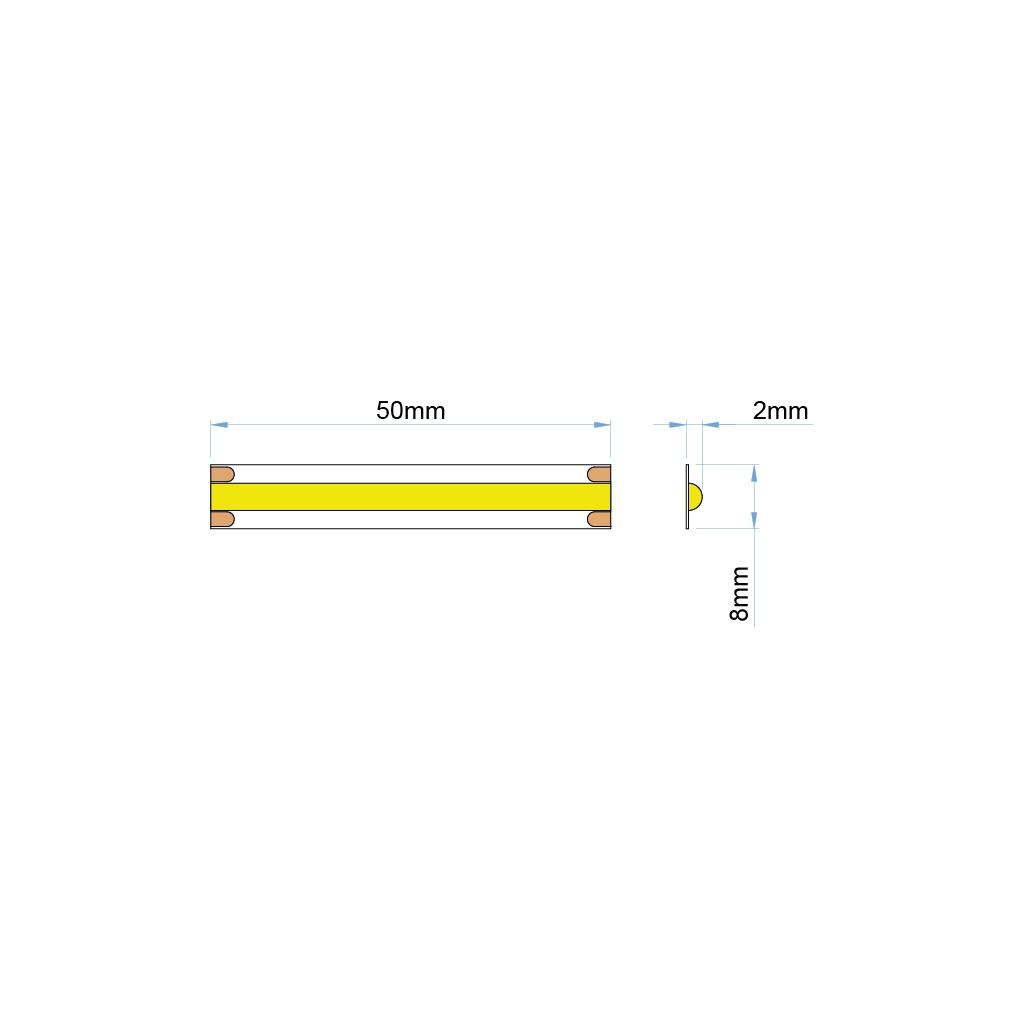

Dimensions

Height	2 mm
Width	8 mm
Reel	5 m
Length of cutting module	50 mm

Technical specifications

Power	7.2W/m
Voltage	24V
LED/m	320
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	605	84
>90	3000K	605	84
>90	4000K	675	94
>90	5500K	650	90

Technical data sheet

st83 datasheet

Technical drawing

st83 technical drawing

Certificates

st83 ul listed certificate united states

st83 ul listed certificate canada
