ST84

Dimmable COB LED strip, IP20, 24V DC

Strip LED

Consistent and versatile lighting, variable brightness: 699 lumens/m at 2700K, 818 lumens/m at 3000K, 743 lumens/m at 4000K and 736 lumens/m at 5500K.

Typology

COB

Certifications

Product details

LED strip ST84- COF 24V DC

The ST84 LED strip is ideal for ambiences that require uniform and versatile lighting with COB technology. With a 24V DC power supply, it offers 9.6W/m power and variable brightness: 699 lumens/m at 2700K, 818 lumens/m at 3000K, 743 lumens/m at 4000K and 736 lumens/m at 5500K. Featuring a CRI greater than 90, this LED strip is IP20 rated and UL Listed, CE, UKCA and RoHS certified.

Dimensions

Height	2 mm
Width	8 mm
Reel	5 m
Length of cutting module	50 mm

Technical specifications

Power	9.6W/m
Voltage	24V
LED/m	480
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	699	73
>90	3000K	818	85
>90	4000K	743	77
>90	5500K	736	77

Technical data sheet

st84 datasheet

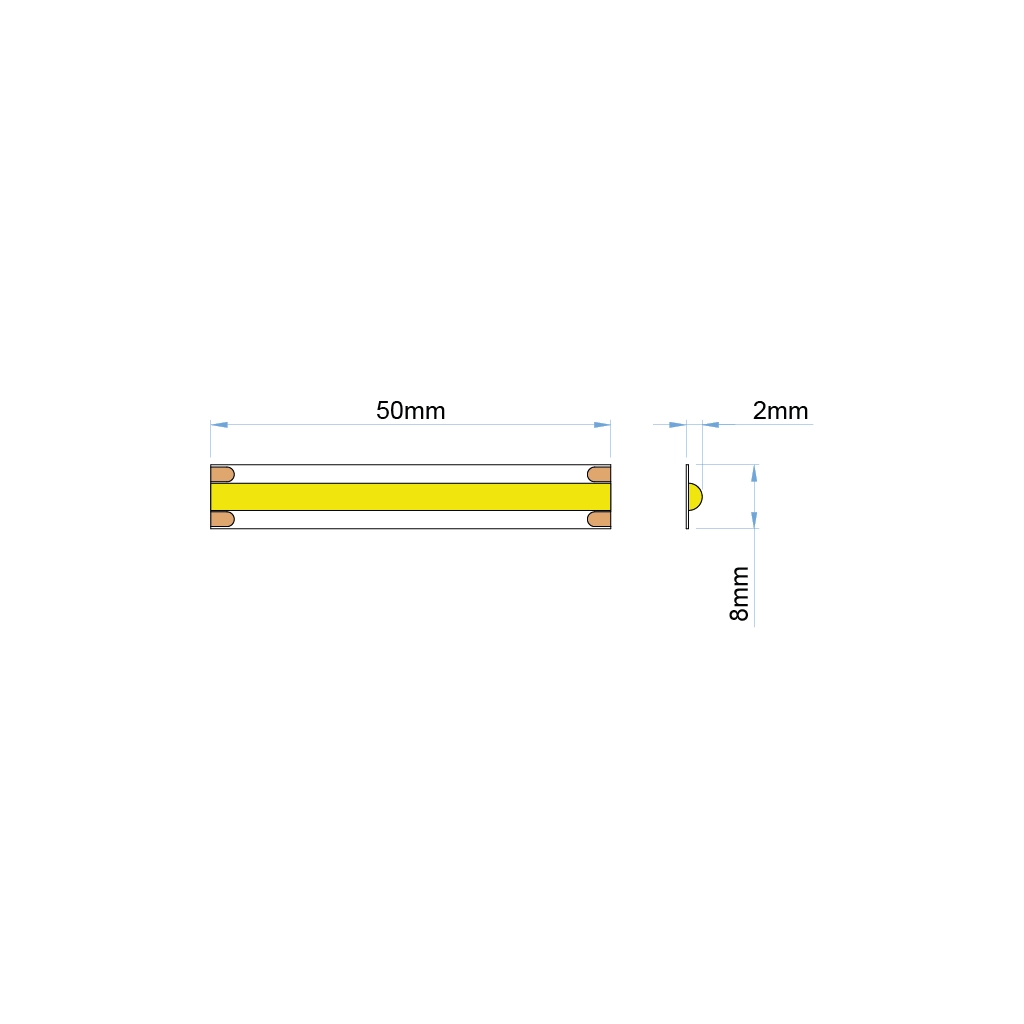

Technical drawing

st84 technical drawing

Certificates

st84 ul listed certificate united states

st84 ul listed certificate canada
