ST80

Dimmable COB LED strip, IP20, 12V DC

Strip LED

Consistent and versatile lighting, brightness ranging from 383 to 425 lumens per meter.

Typology

COB

Certifications

Product details

LED strip ST80 - COF 12V DC

The ST80 is an LED strip designed to provide uniform and versatile lighting using COB technology. With a 12V DC power supply, it offers brightness ranging from 383 to 425 lumens per meter and a light efficiency of 6W/m. The LED strip has a CRI above 90 and an IP20 rating. UL Listed, CE, UKCA and RoHS certified.

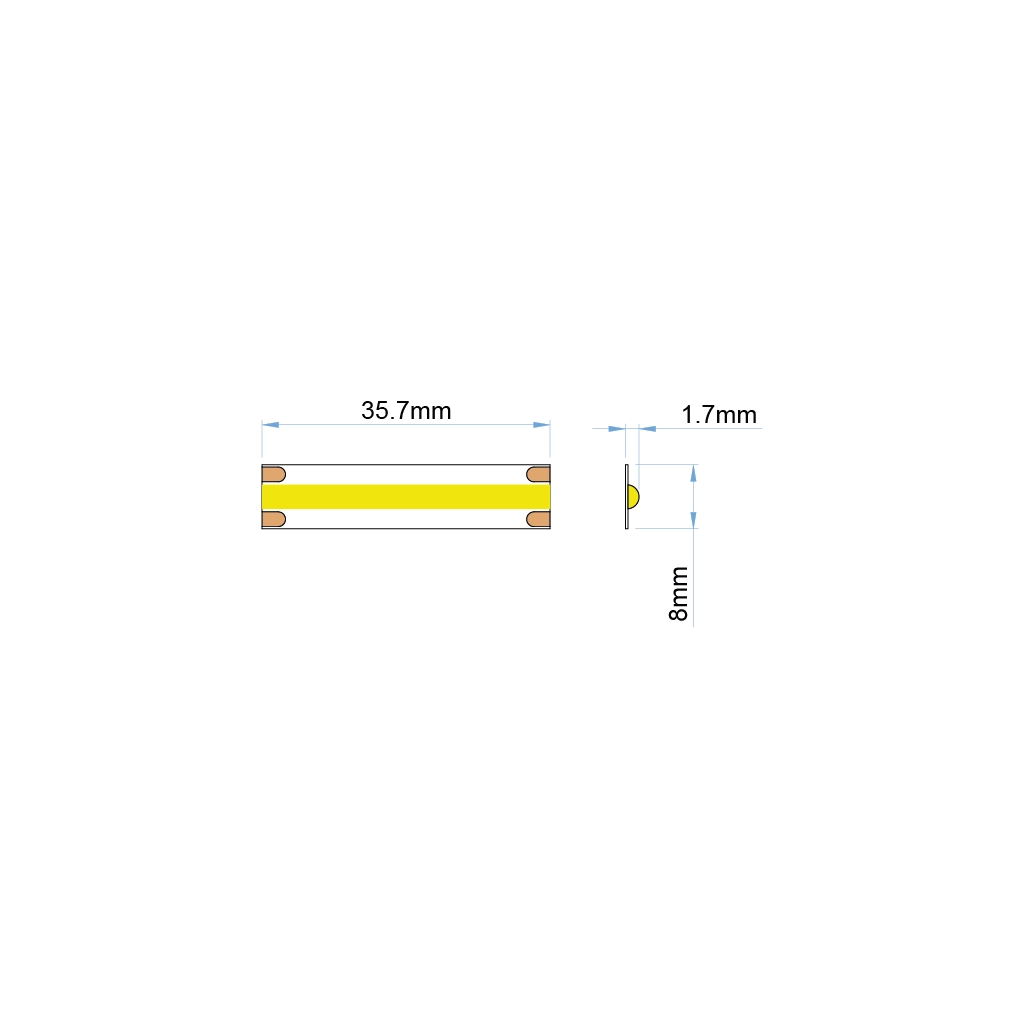

Dimensions

Height	1.7 mm
Width	8 mm
Reel	5 m
Length of cutting module	35.7 mm

Technical specifications

Power	6W/m
Voltage	12V
LED/m	504
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	399	67
>90	3000K	383	64
>90	4000K	425	71
>90	5500K	420	70

Technical data sheet

st80 datasheet

Technical drawing

st80 technical drawing

Certificates

st80 ul listed certificate united states

st80 ul listed certificate canada
