ST82

Dimmable COB LED strip, IP20, 24V DC

Strip LED

Consistent and versatile lighting, brightness ranging from 1178 to 1240 lumens per meter.

Typology

COB

Certifications

Product details

LED strip ST82 - COF 24V DC

The ST82 is an LED strip that offers uniform and versatile lighting using COB technology. With a 24V DC power supply, it provides brightness ranging from 1178 to 1240 lumens per meter with a luminous efficiency of 15W/m. Equipped with a CRI of over 90, it ensures high-quality color rendering. UL Listed, CE, UKCA and RoHS certified, it is suitable for indoor spaces with an IP20 rating.

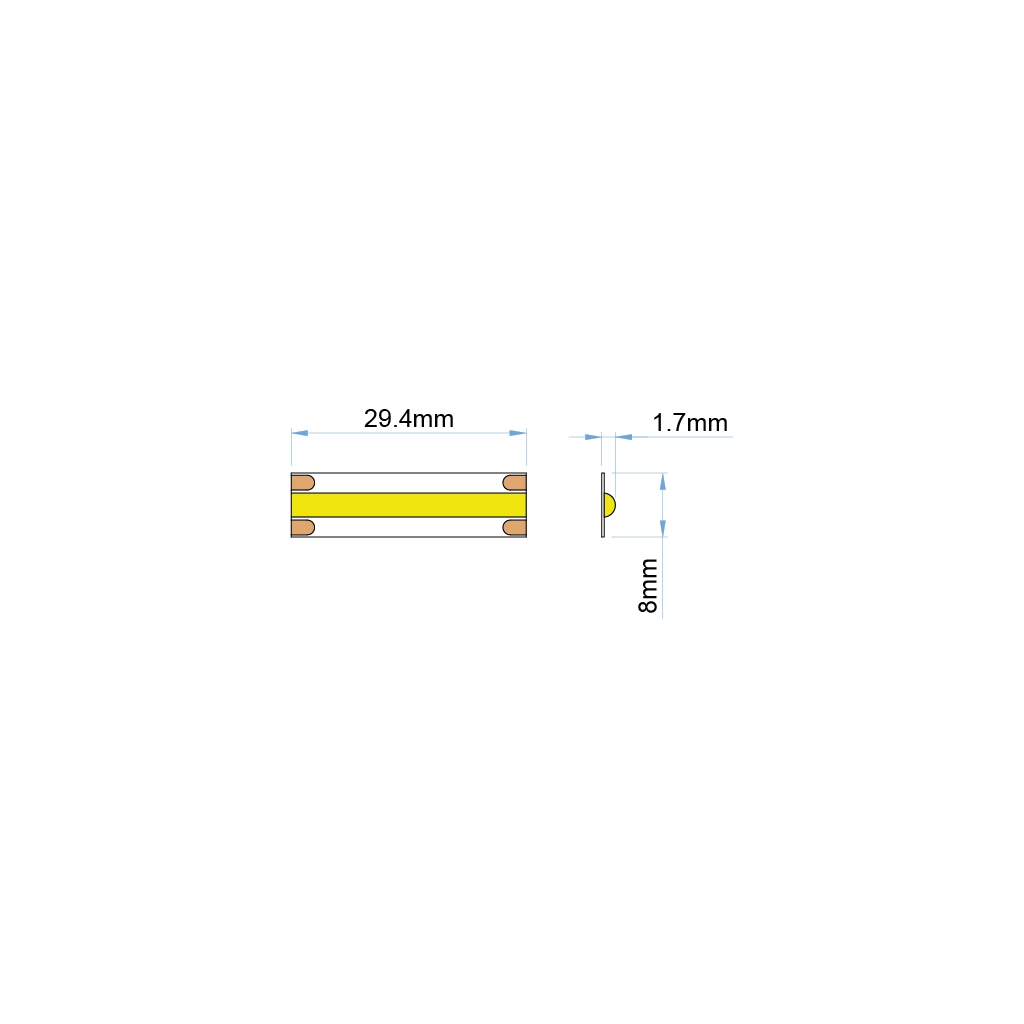

Dimensions

Height	1.7 mm
Width	8 mm
Reel	5 m
Length of cutting module	29.4 mm

Technical specifications

Power	15W/m
Voltage	24V
LED/m	544
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	1166	78
>90	3000K	1178	79
>90	4000K	1240	83
>90	5500K	1228	82

Technical data sheet

st82 datasheet

Technical drawing

st82 technical drawing

Certificates

st82 ul listed certificate united states

st82 ul listed certificate canada
