ST90

Dimmable COB LED strip, IP20, 12V DC

Strip LED

Consistent and versatile lighting, variable brightness: 911 lumens/m at 2700K, 838 lumens/m at 3000K, 970 lumens/m at 4000K and 960 lumens/m at 5500K.

Typology

COB

Certifications

Product details

LED strip ST90 - COF 12V DC

The ST90 LED strip offers uniform and versatile lighting with COB technology. With a 12V DC power supply, this LED strip delivers 9.6W/m and provides variable brightness: 911 lumens/m at 2700K, 838 lumens/m at 3000K, 970 lumens/m at 4000K, and 960 lumens/m at 5500K. With a CRI above 90, it provides excellent color rendering. Rated IP20, it is CE, UKCA and RoHS certified.

Dimensions

Height	1.8 mm
Width	8 mm
Reel	5 m
Length of cutting module	Free cut

Technical specifications

Power	9.6W/m
Voltage	12V
LED/m	640
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	911	95
>90	3000K	838	87
>90	4000K	970	101
>90	5500K	960	100

Technical data sheet

st90 datasheet

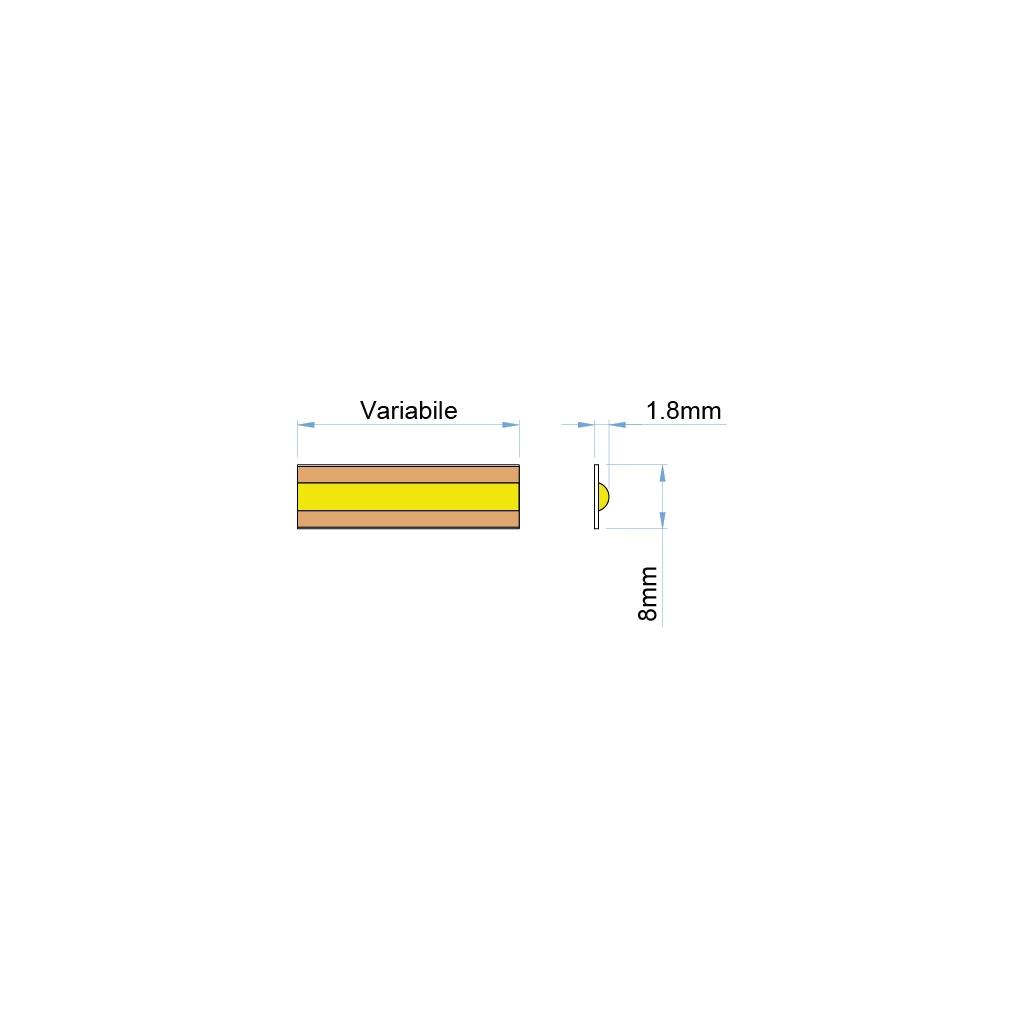

Technical drawing

st90 technical drawing
