ST85

Dimmable COB LED strip, IP20, 12V DC

Strip LED

Consistent and versatile lighting, variable brightness: 324 lumens/m at 2700K, 390 lumens/m at 3000K, 420 lumens/m at 4000K and 392 lumens/m at 5500K.

Typology

COB

Certifications

Product details

LED strip ST85 - COF 12V DC

The ST85 LED strip is designed to provide uniform and versatile lighting using COB technology. With a 12V DC power supply, it offers 4W/m power and variable brightness: 324 lumens/m at 2700K, 390 lumens/m at 3000K, 420 lumens/m at 4000K, and 392 lumens/m at 5500K. With a CRI above 90, this LED strip is IP20 rated and CE, UKCA, RoHS and CL3 certified.

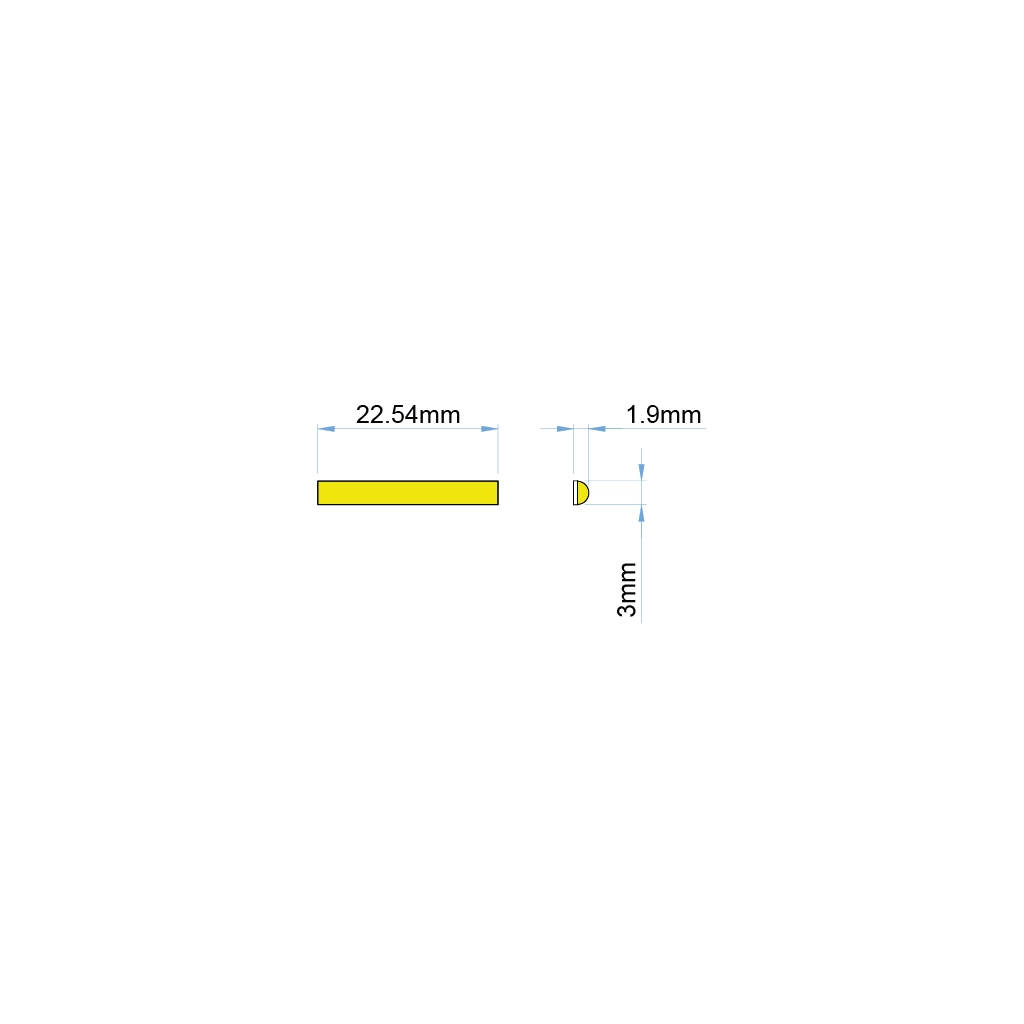

Dimensions

Height	1.9 mm
Width	3 mm
Reel	5 m
Length of cutting module	22.54 mm

Technical specifications

Power	4W/m
Voltage	12V
LED/m	528
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	324	81
>90	3000K	390	97
>90	4000K	420	105
>90	5500K	392	98

Technical data sheet

st85 datasheet

Technical drawing

st85 technical drawing
