st32 24 led strip ip66 neon ul listed 24v 1

ST32.24

Dimmable neon LED strip, IP66, 24V DC

Strip LED

Soft light and intense color. Milky cover with consistent brightness, available in colour temperatures of 2700K, 3000K, 4000K and 5500K.

Typology

Neon

Certifications

Product details

LED strip ST32.24 - Neon 24V DC

The ST32.24 LED strip combines intense lighting, offering uniform light thanks to its opal diffuser. With an IP66 rating, it is resistant to humid environments, suitable for different applications. Available in color temperatures of 2700K, 3000K, 4000K and 5500K, it provides brightness ranging from 1347 to 1433 lumens per meter and a luminous efficacy of up to 96 lumens per watt. With an output of 15W/m, the ST32.24 is powered at 24V DC.

Dimensions

Height	4.3 mm
Width	9.5 mm
Reel	5 m
Length of cutting module	25 mm

Technical specifications

Power	15W/m
Voltage	24V
LED/m	280
SMD	2216
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	1347	90
>90	3000K	1253	84
>90	4000K	1433	96
>90	5500K	1419	95

Technical data sheet

st32 24 datasheet

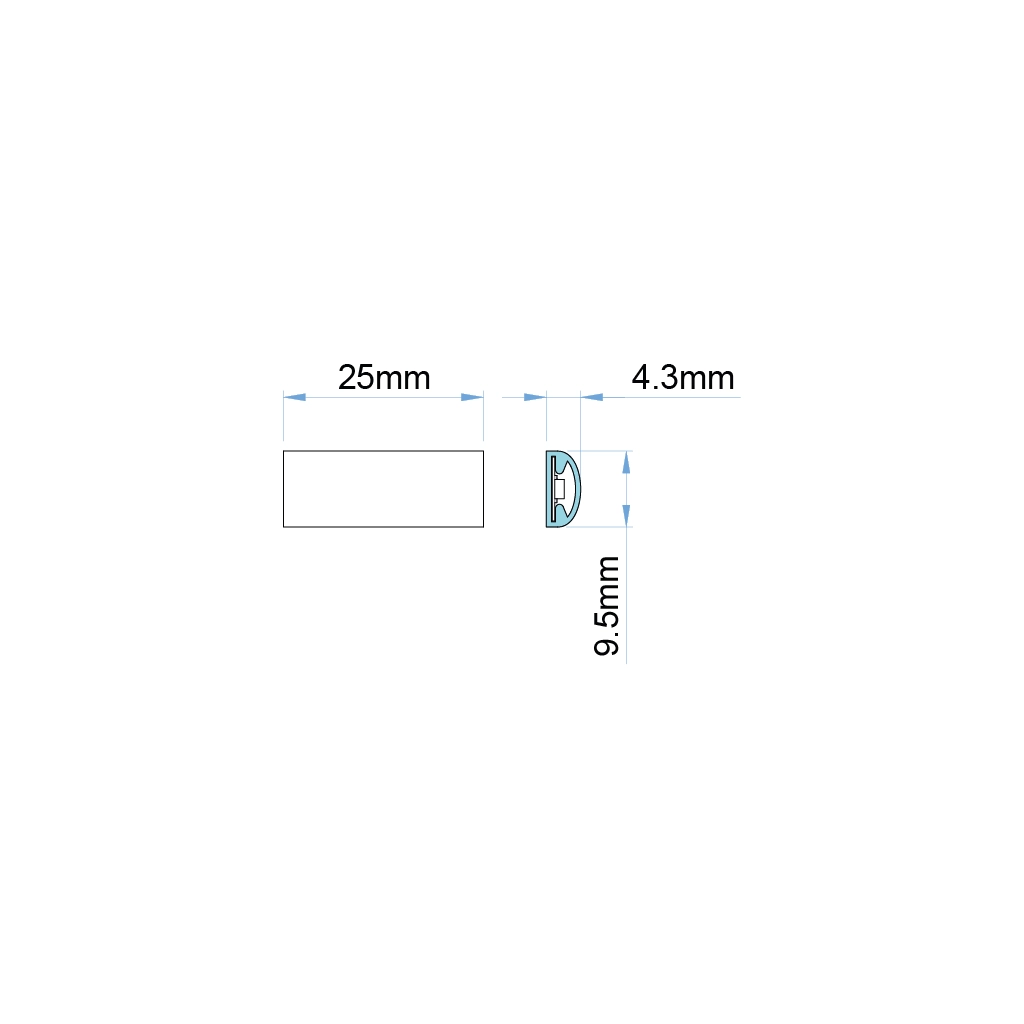

Technical drawing

st32 24 technical drawing

Certificates

st32 24 ul listed certificate united states

st32 24 ul listed certificate canada
