ST50.T23

Tunable white LED strip, IP20, 24V DC

Strip LED

Dynamic white light. Adjustable color temperature 3000-4000K with 3 power poles.

Typology

Tunable white

Certifications

Product details

LED strip ST50.T23 - Tunable white 24V DC

The ST50.T23 is a dynamic white dimmable LED strip with adjustable shades between 3000K and 4000K, ideal for spaces that need a customizable color temperature. With an IP20 rating, it is designed for indoor installations and provides brightness ranging from 712 to 820 lumens per meter and a luminous efficacy of up to 85 lumens per watt. With an output of 9.6W/m, the ST50.T23 is powered by 24V DC, with a CRI of over 90 for optimal light quality.

Dimensions

Height	1.3 mm
Width	8 mm
Reel	5 m
Length of cutting module	50 mm

Technical specifications

Power	9.6W/m
Voltage	24V
LED/m	240
SMD	2216
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	No
Tunable white	Yes
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W	Energy class
>90	3000/4000K	712/820	74/85

Technical data sheet

st50 t23 datasheet

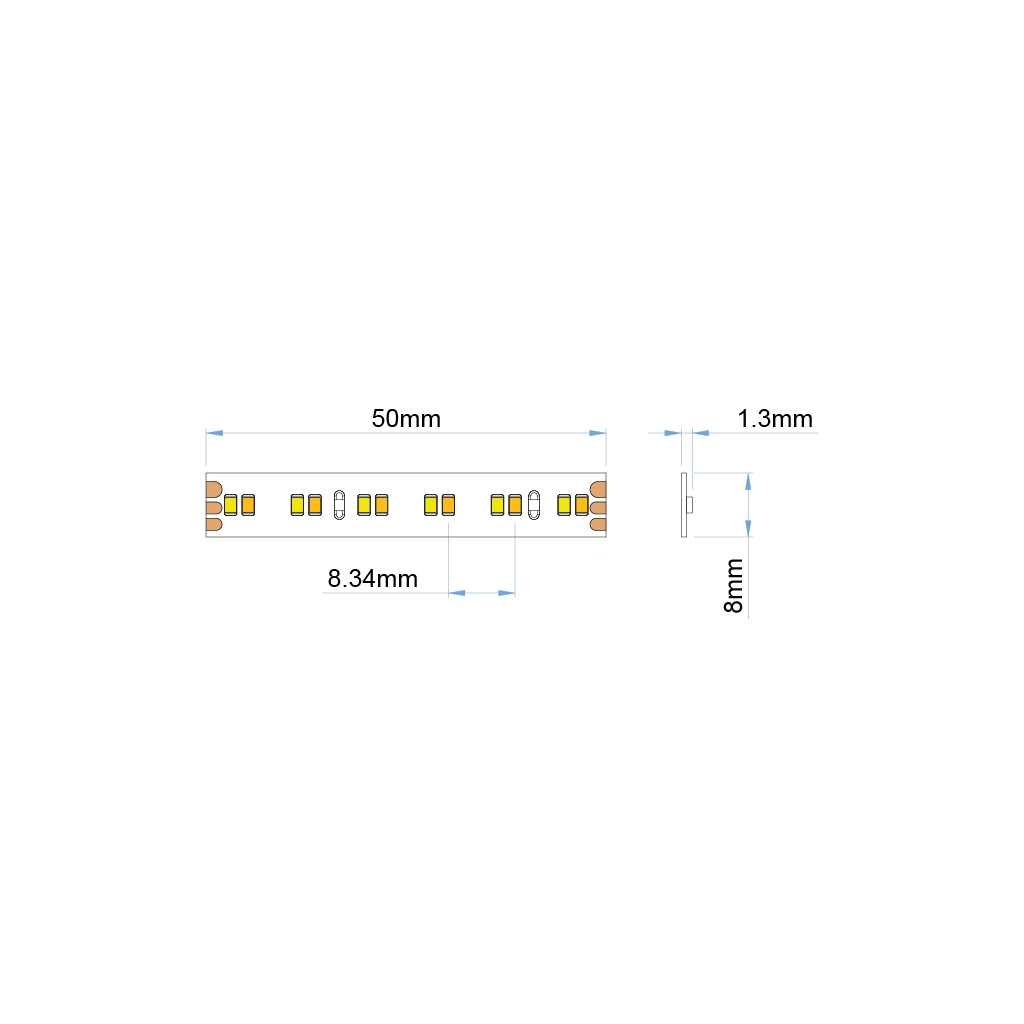

Technical drawing

st50 t23 technical drawing

Certificates

st50 t23 ul listed certificate united states

st50 t23 ul listed certificate canada
