ST23
Dimmable pro LED strip, IP20, 24V DC
Strip LED
Consistent color and energy efficiency, 1637 lumens/m at 2700K and 1569 lumens/m at 4000K.
Typology
Pro
Certifications
Product details

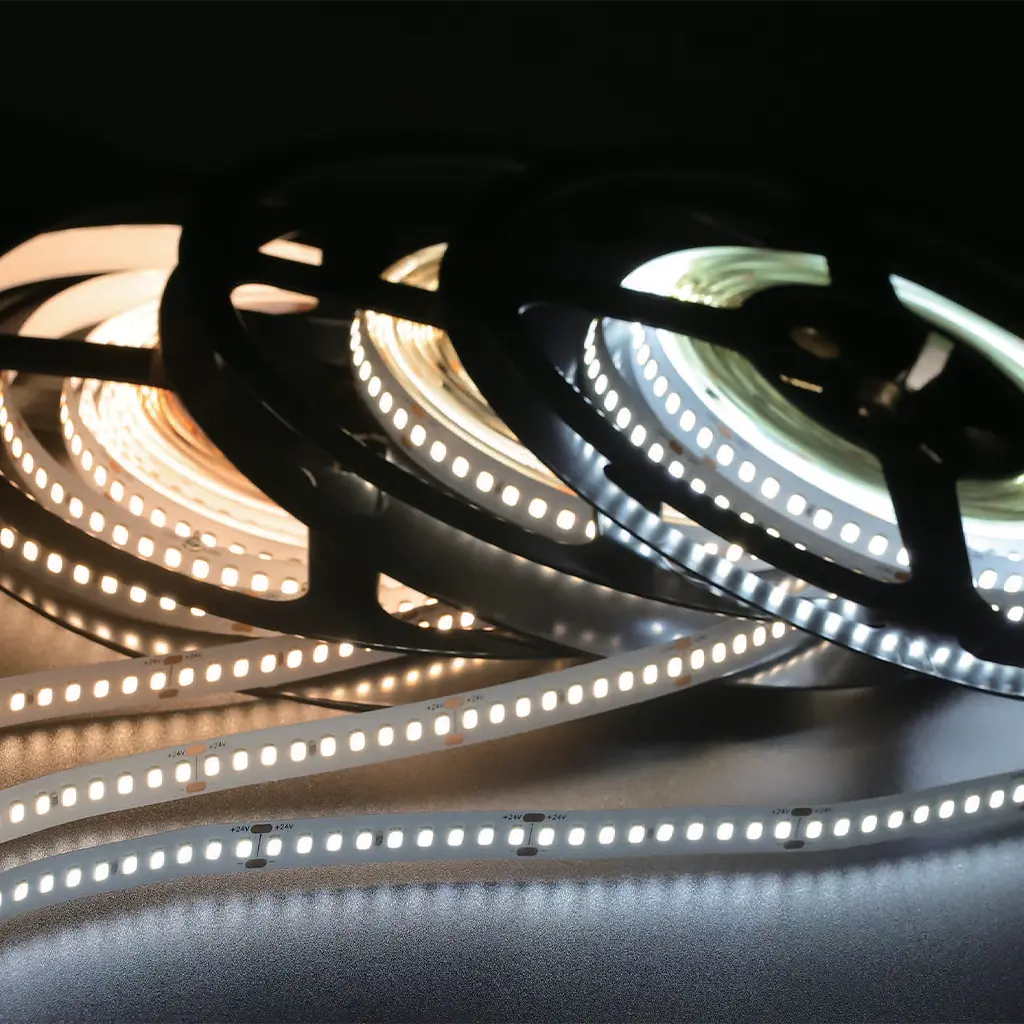

LED strip ST23 - White pro 24V DC
The ST23 LED strip is designed to provide uniform lighting, with brightness reaching 1637 lumens/m at 2700K and 1569 lumens/m at 4000K. With an efficiency ranging from 140 lumens/W to 134 lumens/W, it is ideal for ambiences that require bright light. It operates at 24V DC with a consumption of 11.7W/m. The strip has a cutoff module length of 50 mm and a thickness of 1.5 mm, with IP20 protection. It is UL Listed, CE, UKCA and RoHs certified.

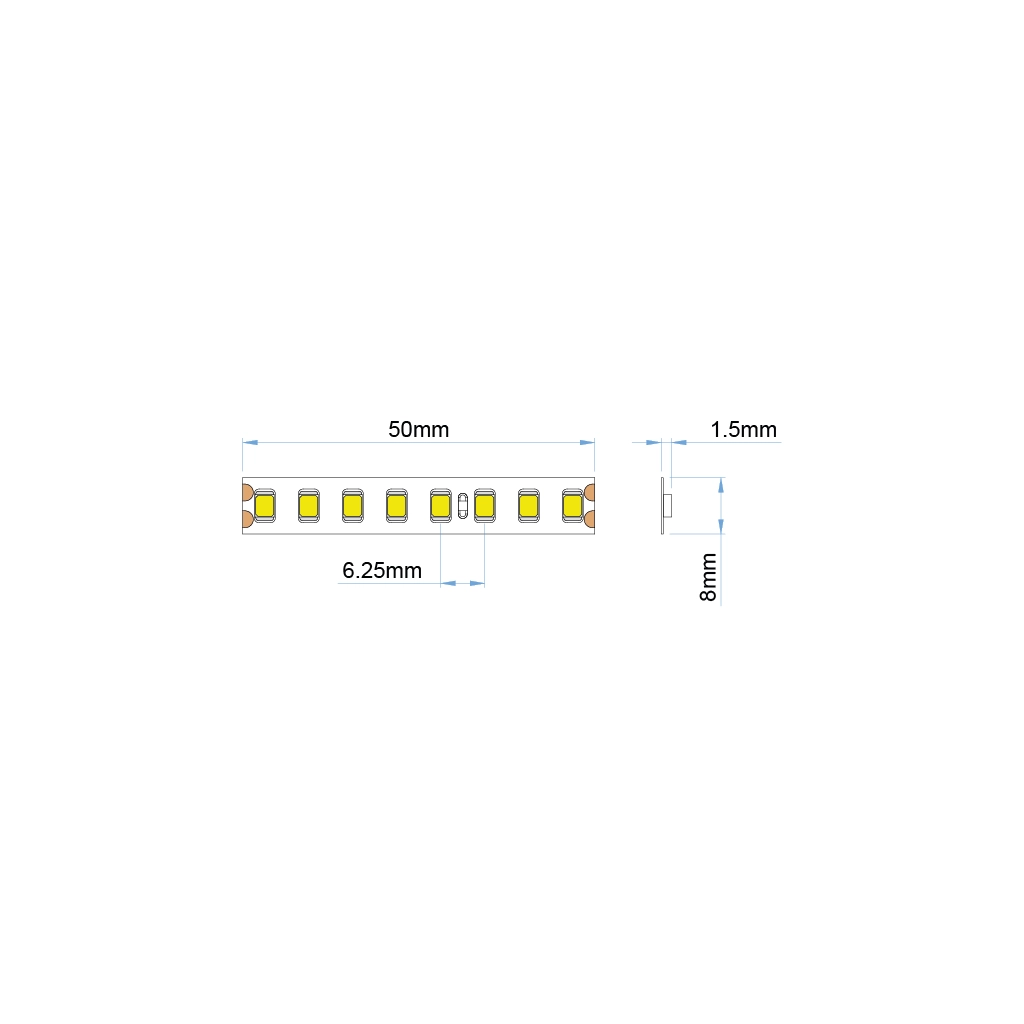

Dimensions
| Height | 1.5 mm |
| Width | 8 mm |
| Reel | 10 m |
| Length of cutting module | 50 mm |
Technical specifications
| Power | 11.7W/m |
| Voltage | 24V |
| LED/m | 160 |
| SMD | 2835 |
| Mounting | Adhesive tape |
| IP rate |
 |
Additional Information
| Dimmable | Yes |
| Tunable white | No |
| RGB | No |
| RGB+W | No |
| CRI | CCT | Lumen/m | Lumen/W | Energy class |
|---|---|---|---|---|
| >80 |  2700K |
1637 | 140 |
|
| >80 |  3000K |
1584 | 135 |
|
| >80 |  4000K |
1569 | 134 |
|
| >80 |  5500K |
1541 | 132 |
|
| >90 | 2700K |
1240 | 123 |
|
| >90 | 3000K |
1330 | 114 |
|
| >90 | 4000K |
1336 | 114 |
|
| >90 | 5500K |
1306 | 112 |
|
