LED profile | Bases - P27: external aluminum profile for bases

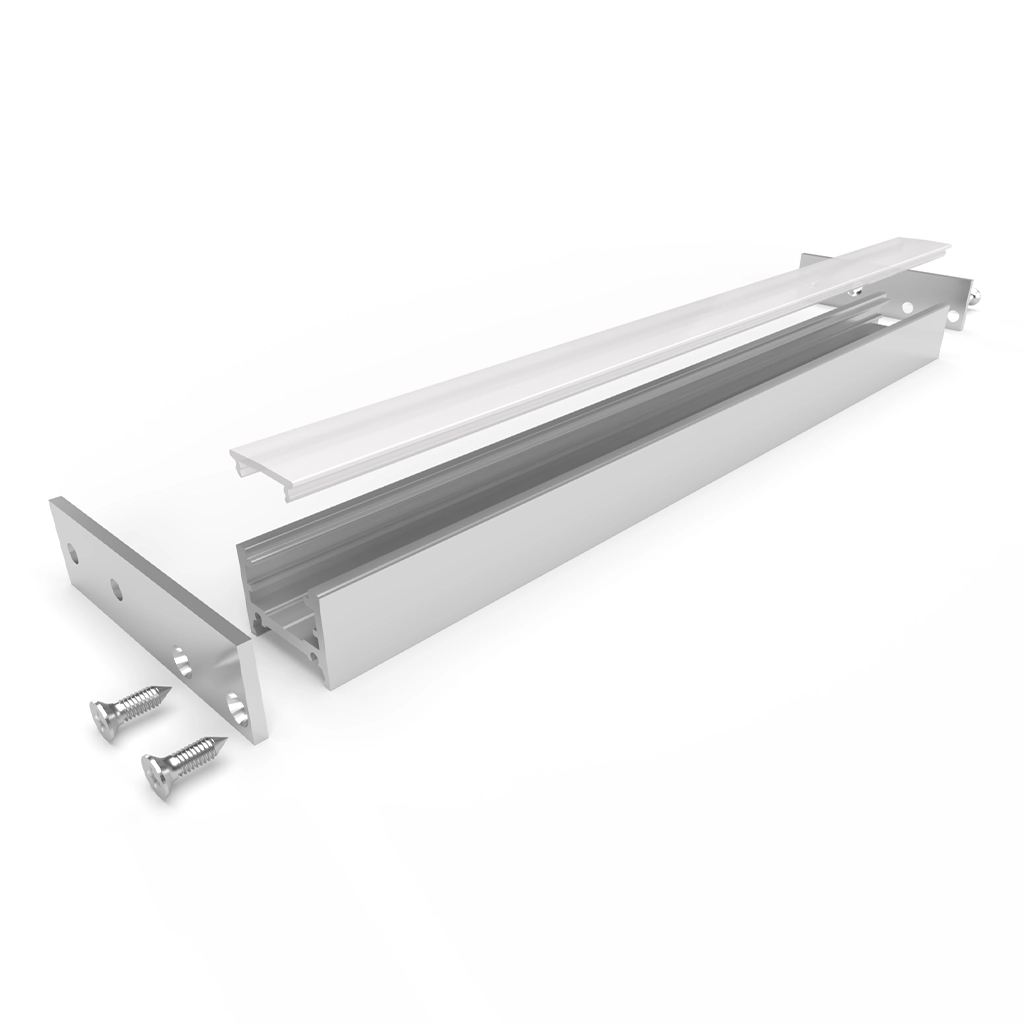

The Bases - P27 LED profile is a durable and functional solution for lighting on bases and drawers. With a width of 20 mm and a thickness of 15 mm, this aluminum profile is designed to fit overhanging installations. The available aluminum and black finishes are durable and adapt to various ambiences. The P27 supports the integration of accessories such as caps and brackets, and power options such as radar and presence detectors, allowing advanced customization. CE, UKCA, and RoHS certified, it is perfect for applications in commercial and residential spaces. The length is customizable according to design requirements.

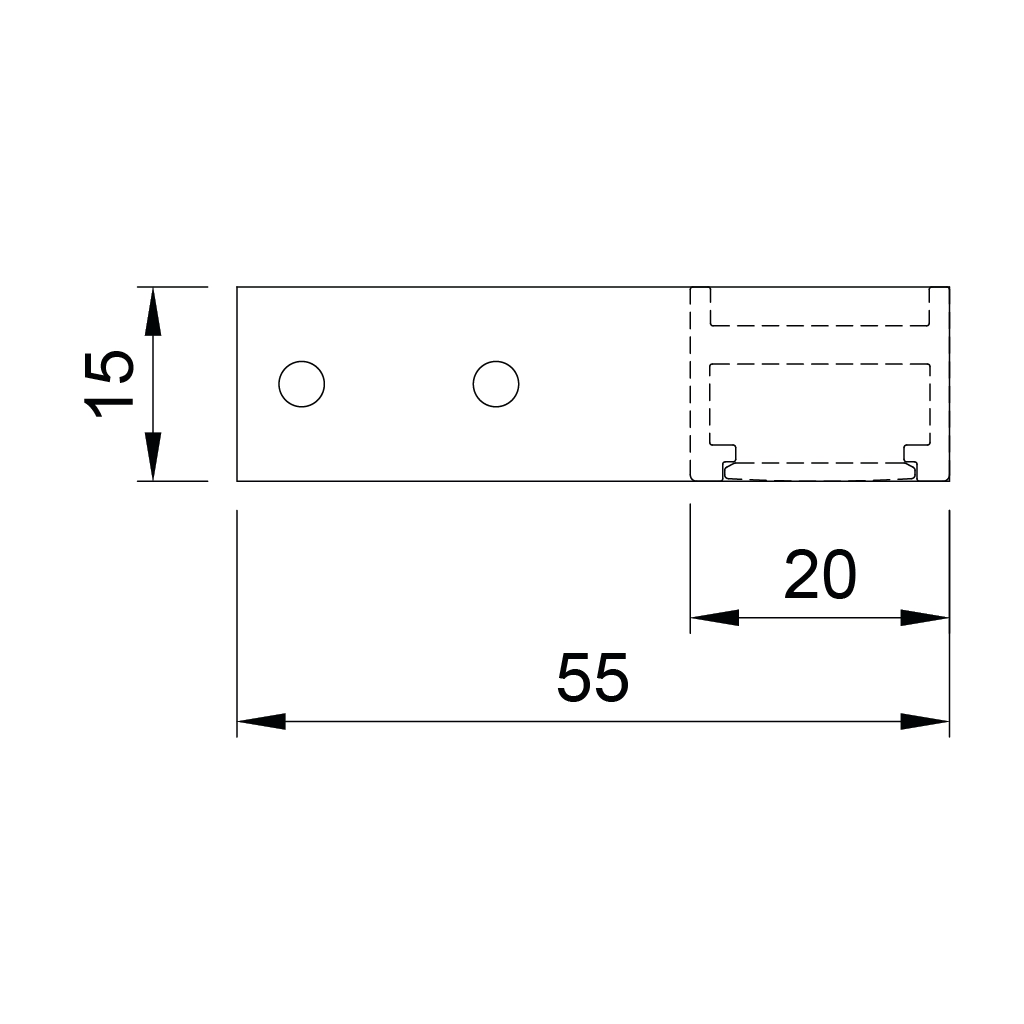

Dimensions
| Length | A misura |
| Width | 20 mm |
| Thickness | 15 mm |
Product design
| Finishes |
Aluminum
Black
|
| Screen color | White |
| Material | Aluminum |
| Product code | Width | Power | Voltage | Lumen/m (4000K) |
|---|---|---|---|---|
| ST32.12 | 9.5 mm | 15W/m | 12V | 1240 |
| ST24.5 | 5 mm | 12W/m | 24V | 1431 |
| ST32.24 | 9.5 mm | 15W/m | 24V | 1433 |
| ST25.5 | 5 mm | 7W/m | 24V | 903 |
| ST19.12 | 8 mm | 14.4W/m | 12V | 2066 |
| ST26 | 8 mm | 10W/m | 24V | 1015 |
| ST26.55 | 8 mm | 10W/m | 24V | 942 |
| ST33.12 | 8 mm | 6W/m | 12V | 711 |
| ST19.24 | 8 mm | 14.4W/m | 24V | 1993 |
| ST27.12 | 8 mm | 4.4W/m | 12V | 504 |
| ST26.12 | 8 mm | 10W/m | 12V | 1084 |
| ST22 | 8 mm | 9.5W/m | 24V | 1377 |
| ST26.1255 | 8 mm | 10W/m | 12V | 970 |
| ST33.24 | 8 mm | 6W/m | 24V | 711 |
| ST27.1255 | 8 mm | 4.4W/m | 12V | 472 |
| ST26.5 | 5 mm | 10W/m | 24V | 1084 |
| ST26.5.12 | 5 mm | 10W/m | 12V | 1076 |
| ST41 | 10 mm | 19.2W/m | 24V | 1899 |
| ST28.12 | 8 mm | 7W/m | 12V | 1122 |
| ST27 | 8 mm | 4.4W/m | 24V | 474 |
| ST41.55 | 10 mm | 19.2W/m | 24V | 1811 |
| ST23 | 8 mm | 11.7W/m | 24V | 1569 |
| ST43.24 | 8 mm | 8W/m | 24V | 1054 |
| ST23.55 | 8 mm | 11.7W/m | 24V | 1532 |
| ST27.55 | 8 mm | 4.4W/m | 24V | 490 |
| ST28.1255 | 8 mm | 7W/m | 12V | 982 |
| ST43.2455 | 8 mm | 8W/m | 24V | 776 |
| ST28.24 | 8 mm | 7W/m | 24V | 1125 |
| ST28.2455 | 8 mm | 7W/m | 24V | 961 |
| ST43.5 | 5 mm | 8W/m | 24V | 1050 |
| ST50.TW | 8 mm | 9.6W/m | 24V | 712 |
| ST29.5.12 | 5 mm | 7W/m | 12V | 792 |
| ST30.12 | 9.5 mm | 6W/m | 12V | 518 |
| ST30.24 | 9.5 mm | 6W/m | 24V | 627 |
| ST50.T23 | 8 mm | 9.6W/m | 24V | 820 |
| ST31.24 | 7.5 mm | 12W/m | 24V | 1162 |
| ST84 | 8 mm | 9.6W/m | 24V | 743 |
| ST84.65 | 9.5 mm | 9.6W/m | 24V | 801 |
| ST85 | 3 mm | 4W/m | 12V | 420 |
| ST50.TW.12 | 8 mm | 9.6W/m | 12V | 674 |
| ST86 | 5 mm | 6W/m | 12V | 627 |
| ST56.T23.24.90 | 8 mm | 11.5W/m | 24V | 1160 |
| ST50.TWNA | 8 mm | 9.6W/m | 24V | 755 |
| ST90 | 8 mm | 9.6W/m | 12V | 970 |
| ST58 | 10 mm | 7.5W/m | 24V | 600 |
| ST52 | 4.5 mm | 9.6W/m | 24V | 684 |
| ST59.TW | 5 mm | 4.2W/m | 24V | 417 |
| ST59.T23 | 5 mm | 4.2W/m | 24V | 474 |
| ST52.TW | 4.5 mm | 9.6W/m | 24V | 620 |
| ST60 | 8 mm | 9.6W/m | 24V | 257 |
| ST52.T23 | 4.5 mm | 9.6W/m | 24V | 680 |
| ST62.24 | 6.1 mm | 10W/m | 24V | 970 |
| ST63.24 | 8 mm | 9.6W/m | 24V | 675 |
| ST80 | 8 mm | 6W/m | 12V | 425 |
| ST82 | 8 mm | 15W/m | 24V | 1240 |
| ST53.RGB.12 | 8 mm | 10W/m | 12V | |
| ST83 | 8 mm | 7.2W/m | 24V | 675 |
| ST53.RGB.24 | 8 mm | 10W/m | 24V | |
| ST83.65 | 9.5 mm | 7.2W/m | 24V | 594 |
| ST53.RGB.2455 | 8 mm | 24V |
