st62 24 led strip ip20 side view ul listed 24v 1

ST62.24

Dimmable side view LED strip, IP20, 24V DC

Strip LED

Side light emission and high energy efficiency. The strip is available in different colour temperatures: 2700K, 3000K, 4000K, 5500K.

Typology

Side view

Certifications

Product details

LED strip ST62.24 - Side view 24V DC

The ST62.24 LED strip offers energy-efficient side-emitting lighting and a wide range of color temperatures (2700K, 3000K, 4000K, 5500K). With a 24V DC power supply, it provides brightness ranging from 869 to 970 lumens per meter and a luminous efficiency of 10W/m. The LED strip has a CRI of more than 90 and an IP20 rating. UL Listed, CE, UKCA and RoHS certified.

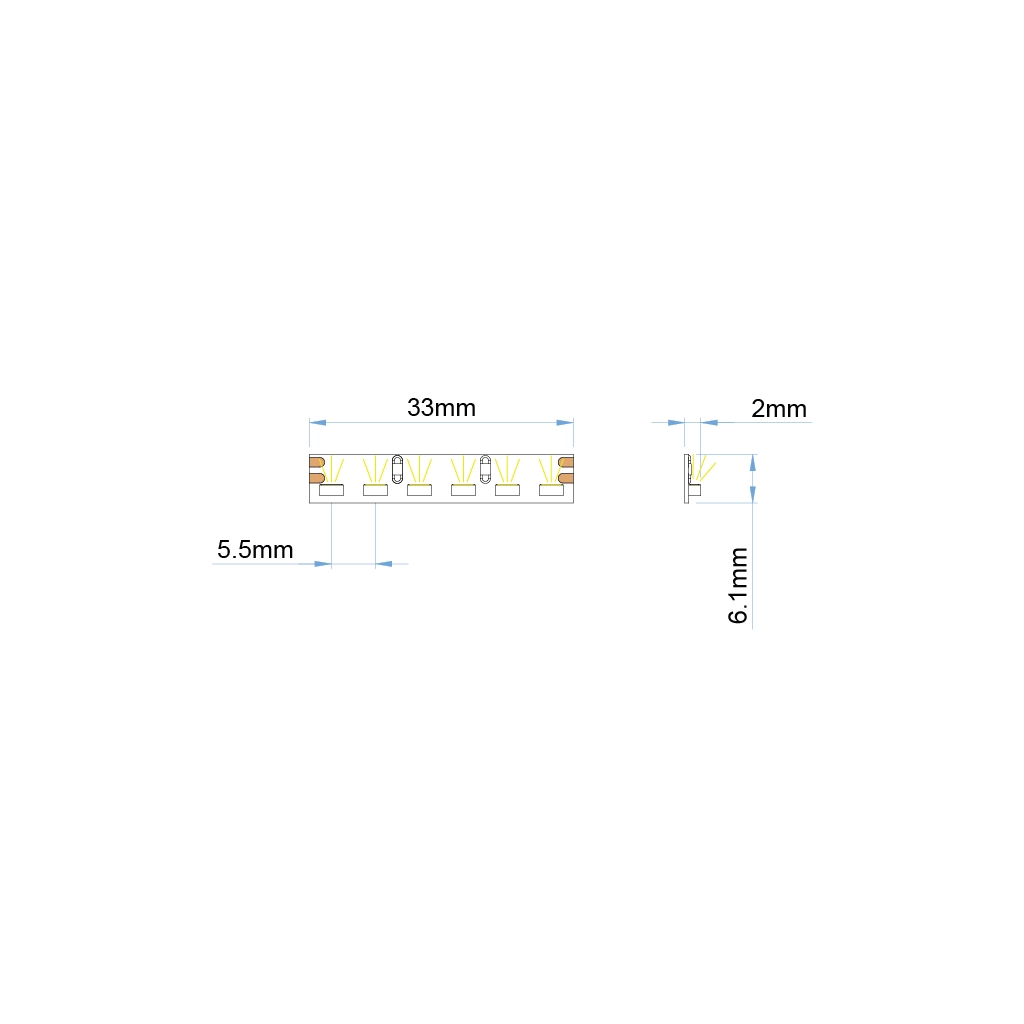

Dimensions

Height	2 mm
Width	6.1 mm
Reel	5 m
Length of cutting module	33 mm

Technical specifications

Power	10W/m
Voltage	24V
LED/m	180
SMD	3014
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	869	87
>90	3000K	901	90
>90	4000K	970	97
>90	5500K	961	96

Technical data sheet

st62 24 datasheet

Technical drawing

st62 24 technical drawing

Certificates

st62 24 ul listed certificate united states

st62 24 ul listed certificate canada
