st63 24 led strip ip20 side view cob 24v 1

ST63.24

Dimmable side view COB LED strip, IP20, 24V DC

Strip LED

Side light emission and high energy efficiency and an adjustable colour temperature between 2700K and 5500K.

Typology

Side view COB

Certifications

Product details

LED strip ST63.24 - Side view 24V DC

The ST63.24 is an LED strip that offers energy-efficient side-emitting lighting and adjustable color temperature between 2700K and 5500K. With a 24V DC power supply, it provides brightness ranging from 635 to 675 lumens per meter and a luminous efficiency of 9.6W/m. With a CRI of more than 90, it ensures excellent light quality. CE, UKCA and RoHS certified, it is suitable for indoor environments with an IP20 rating.

Dimensions

Height	2.5 mm
Width	8 mm
Reel	5 m
Length of cutting module	33 mm

Technical specifications

Power	9.6W/m
Voltage	24V
LED/m	480
SMD	COB
Mounting	Adhesive tape
IP rate

Additional Information

Dimmable	Yes
Tunable white	No
RGB	No
RGB+W	No

CRI	CCT	Lumen/m	Lumen/W
>90	2700K	635	66
>90	3000K	688	72
>90	4000K	675	70
>90	5500K	669	70

Technical data sheet

st63 24 datasheet

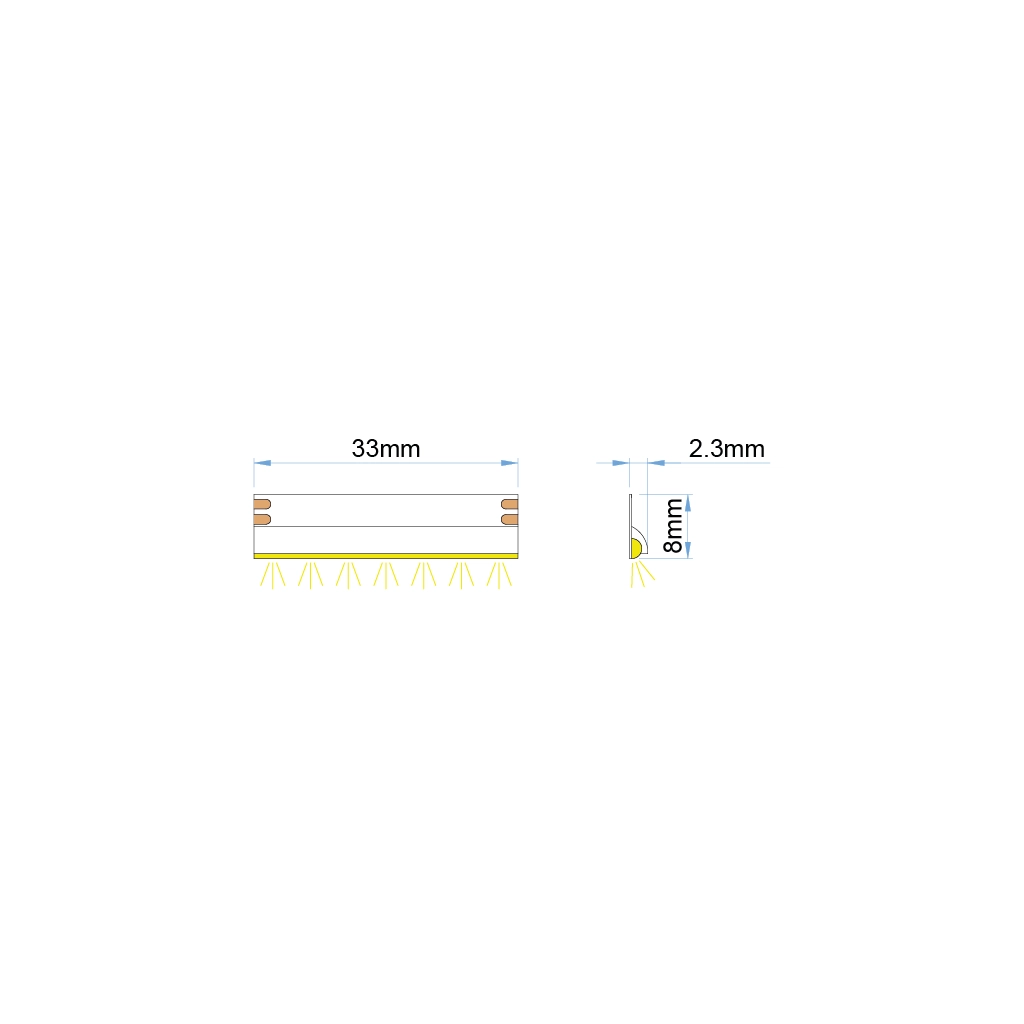

Technical drawing

st63 24 technical drawing
