ST22
Dimmable pro LED strip, IP20, 24V DC
Strip LED
Consistent color and energy efficiency, up to 1377 lumens/m at 4000K and 1363 lumens/m at 5500K.
Typology
Pro
Certifications
Product details
LED strip ST22 - White pro 22V DC
The ST22 LED strip offers a brightness of up to 1377 lumens/m at 4000K and 1363 lumens/m at 5500K, with an efficiency ranging from 128 lumens/W to 145 lumens/W. With a slim design and consumption of 9.5W/m, this LED strip operates at 24V DC. It features a cutoff module length of 62.5 mm and a thickness of 1.5 mm, with IP20 protection. It is UL Listed, CE, UKCA and RoHs certified.

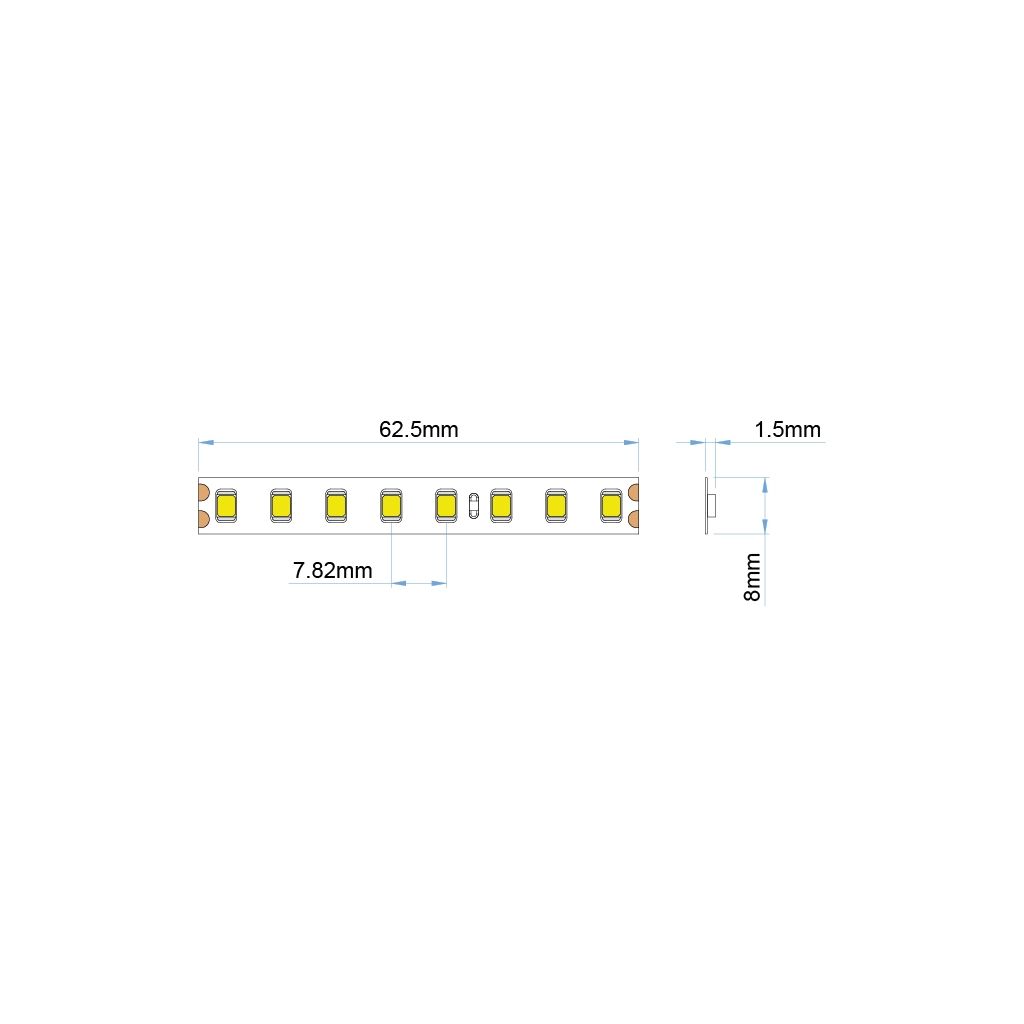

Dimensions
| Height | 1.5 mm |
| Width | 8 mm |
| Reel | 10 m |
| Length of cutting module | 62.5 mm |
Technical specifications
| Power | 9.5W/m |
| Voltage | 24V |
| LED/m | 128 |
| SMD | 2835 |
| Mounting | Adhesive tape |
| IP rate |
 |
Additional Information
| Dimmable | Yes |
| Tunable white | No |
| RGB | No |
| RGB+W | No |
| CRI | CCT | Lumen/m | Lumen/W | Energy class |
|---|---|---|---|---|
| >80 |  2700K |
1295 | 136 |
|
| >80 |  3000K |
1375 | 145 |
|
| >80 |  4000K |
1377 | 145 |
|
| >80 |  5500K |
1363 | 144 |
|
| >90 | 2700K |
1087 | 114 |
|
| >90 | 3000K |
1117 | 118 |
|
| >90 | 4000K |
1108 | 117 |
|
| >90 | 5500K |
1122 | 118 |
|
