Regolo - P46
Aluminum LED profile
LED Profiles
External aluminum LED profile
Typology
External
Installation
Base, Cabinet
Certifications
Product details
LED profile | Regolo - P46: external aluminum profile

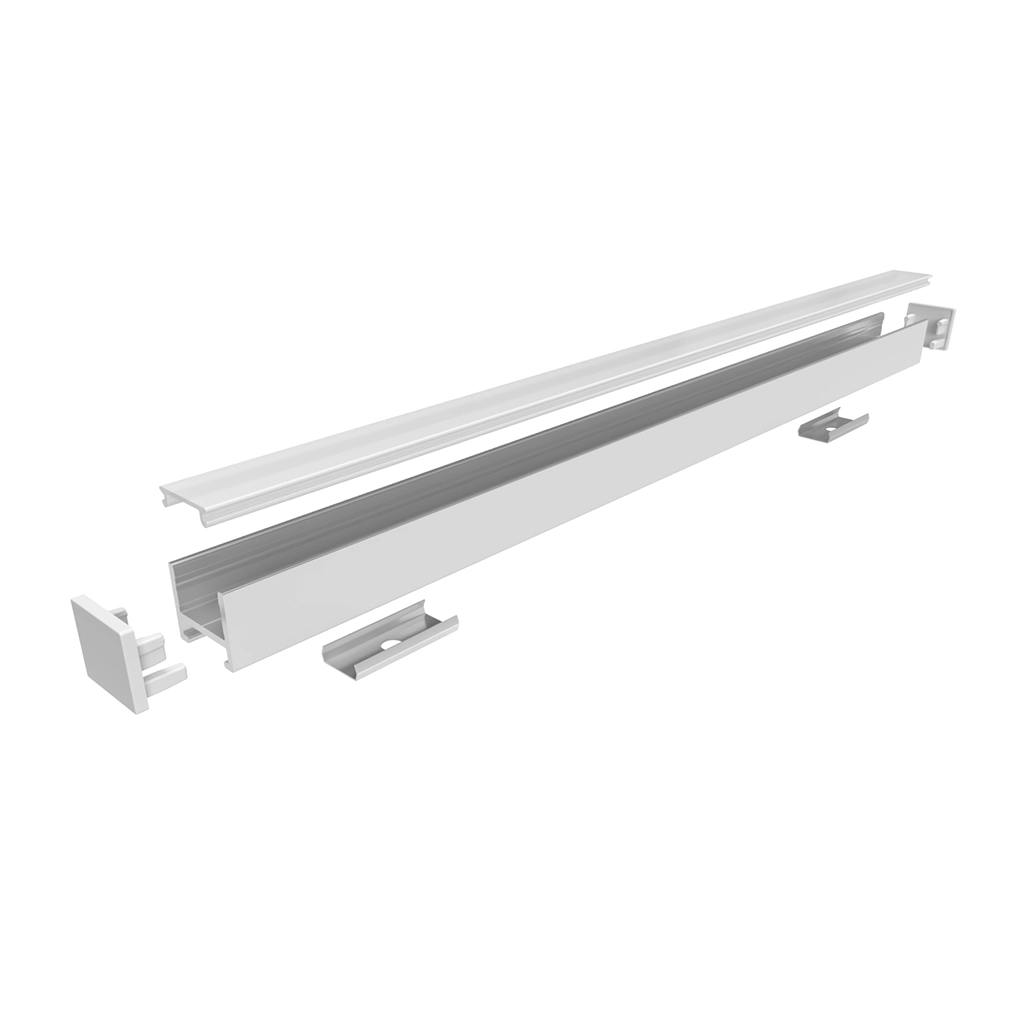

The Regolo - P46 LED profile is designed for external installations, offering a customizable design for wall and base units. With a width of 12.3 mm and a thickness of 12 mm, this aluminum profile can be fitted with accessories such as springs, metal plates, caps and magnets, as well as lighting options such as proximity and touch sensors. Available in white, black and aluminum finishes, it is UL Listed, JA8, CE, UKCA and RoHS certified, ensuring high quality and reliable performance. The length is customizable according to design requirements.

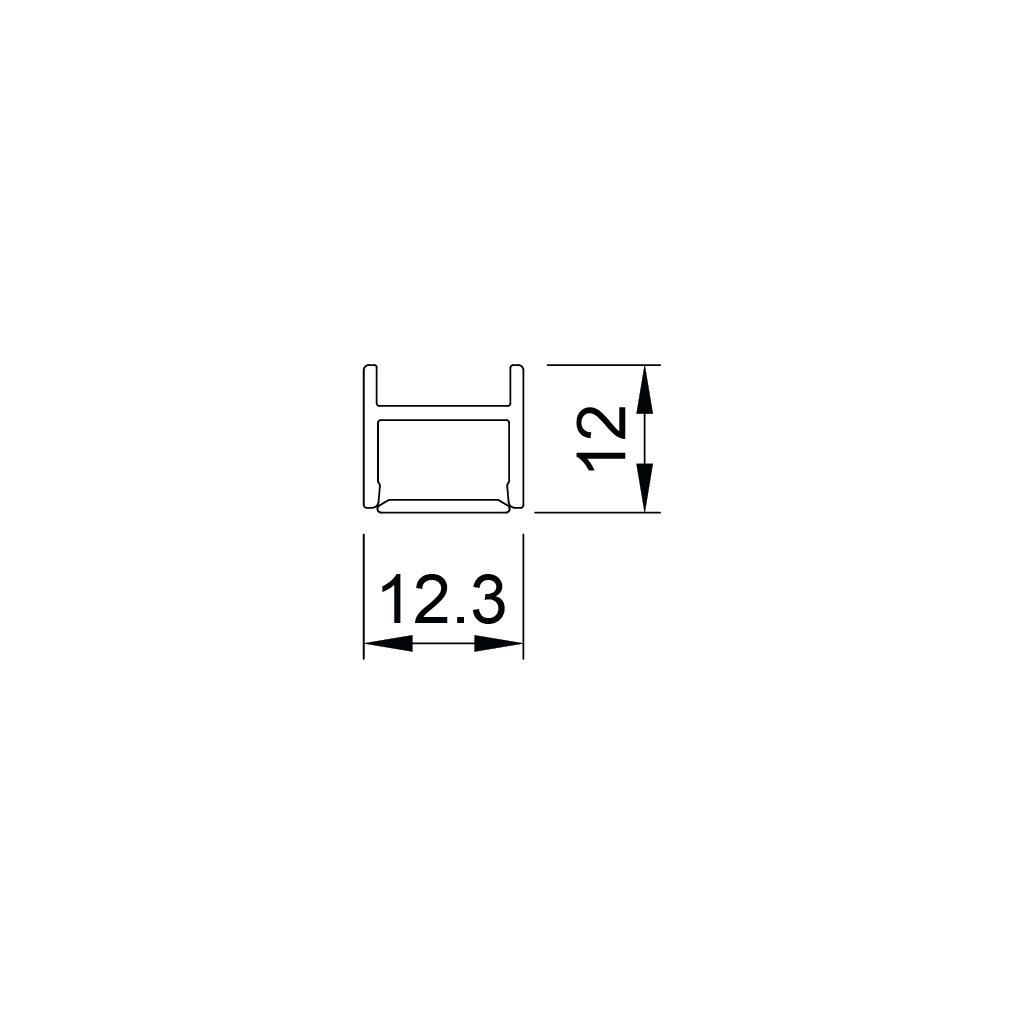

Dimensions
| Length | A misura |
| Width | 12.3 mm |
| Thickness | 12 mm |
Product design
| Finishes |
Aluminum
White
Black
|
| Screen color | White |
| Material | Aluminum |
| Product code | Width | Power | Voltage | Lumen/m (4000K) |
|---|---|---|---|---|
| ST24.5 | 5 mm | 12W/m | 24V | 1431 |
| ST25.5 | 5 mm | 7W/m | 24V | 903 |
| ST19.12 | 8 mm | 14.4W/m | 12V | 2066 |
| ST26 | 8 mm | 10W/m | 24V | 1015 |
| ST26.55 | 8 mm | 10W/m | 24V | 942 |
| ST33.12 | 8 mm | 6W/m | 12V | 711 |
| ST19.24 | 8 mm | 14.4W/m | 24V | 1993 |
| ST27.12 | 8 mm | 4.4W/m | 12V | 504 |
| ST26.12 | 8 mm | 10W/m | 12V | 1084 |
| ST22 | 8 mm | 9.5W/m | 24V | 1377 |
| ST26.1255 | 8 mm | 10W/m | 12V | 970 |
| ST33.24 | 8 mm | 6W/m | 24V | 711 |
| ST27.1255 | 8 mm | 4.4W/m | 12V | 472 |
| ST26.5 | 5 mm | 10W/m | 24V | 1084 |
| ST26.5.12 | 5 mm | 10W/m | 12V | 1076 |
| ST28.12 | 8 mm | 7W/m | 12V | 1122 |
| ST27 | 8 mm | 4.4W/m | 24V | 474 |
| ST23 | 8 mm | 11.7W/m | 24V | 1569 |
| ST43.24 | 8 mm | 8W/m | 24V | 1054 |
| ST23.55 | 8 mm | 11.7W/m | 24V | 1532 |
| ST27.55 | 8 mm | 4.4W/m | 24V | 490 |
| ST28.1255 | 8 mm | 7W/m | 12V | 982 |
| ST43.2455 | 8 mm | 8W/m | 24V | 776 |
| ST28.24 | 8 mm | 7W/m | 24V | 1125 |
| ST28.2455 | 8 mm | 7W/m | 24V | 961 |
| ST43.5 | 5 mm | 8W/m | 24V | 1050 |
| ST50.TW | 8 mm | 9.6W/m | 24V | 712 |
| ST29.5.12 | 5 mm | 7W/m | 12V | 792 |
| ST50.T23 | 8 mm | 9.6W/m | 24V | 820 |
| ST31.24 | 7.5 mm | 12W/m | 24V | 1162 |
| ST84 | 8 mm | 9.6W/m | 24V | 743 |
| ST85 | 3 mm | 4W/m | 12V | 420 |
| ST50.TW.12 | 8 mm | 9.6W/m | 12V | 674 |
| ST86 | 5 mm | 6W/m | 12V | 627 |
| ST56.T23.24.90 | 8 mm | 11.5W/m | 24V | 1160 |
| ST50.TWNA | 8 mm | 9.6W/m | 24V | 755 |
| ST90 | 8 mm | 9.6W/m | 12V | 970 |
| ST52 | 4.5 mm | 9.6W/m | 24V | 684 |
| ST59.TW | 5 mm | 4.2W/m | 24V | 417 |
| ST59.T23 | 5 mm | 4.2W/m | 24V | 474 |
| ST52.TW | 4.5 mm | 9.6W/m | 24V | 620 |
| ST60 | 8 mm | 9.6W/m | 24V | 257 |
| ST52.T23 | 4.5 mm | 9.6W/m | 24V | 680 |
| ST62.24 | 6.1 mm | 10W/m | 24V | 970 |
| ST63.24 | 8 mm | 9.6W/m | 24V | 675 |
| ST80 | 8 mm | 6W/m | 12V | 425 |
| ST82 | 8 mm | 15W/m | 24V | 1240 |
| ST53.RGB.12 | 8 mm | 10W/m | 12V | |
| ST83 | 8 mm | 7.2W/m | 24V | 675 |
| ST53.RGB.24 | 8 mm | 10W/m | 24V | |
| ST53.RGB.2455 | 8 mm | 24V |
