Patrol - P28
Opal polycarbonate LED profile
LED Profiles
Opal polycarbonate LED profile for cabinet
Typology
External, Recessed
Installation
Cabinet, Wood
Certifications
Product details

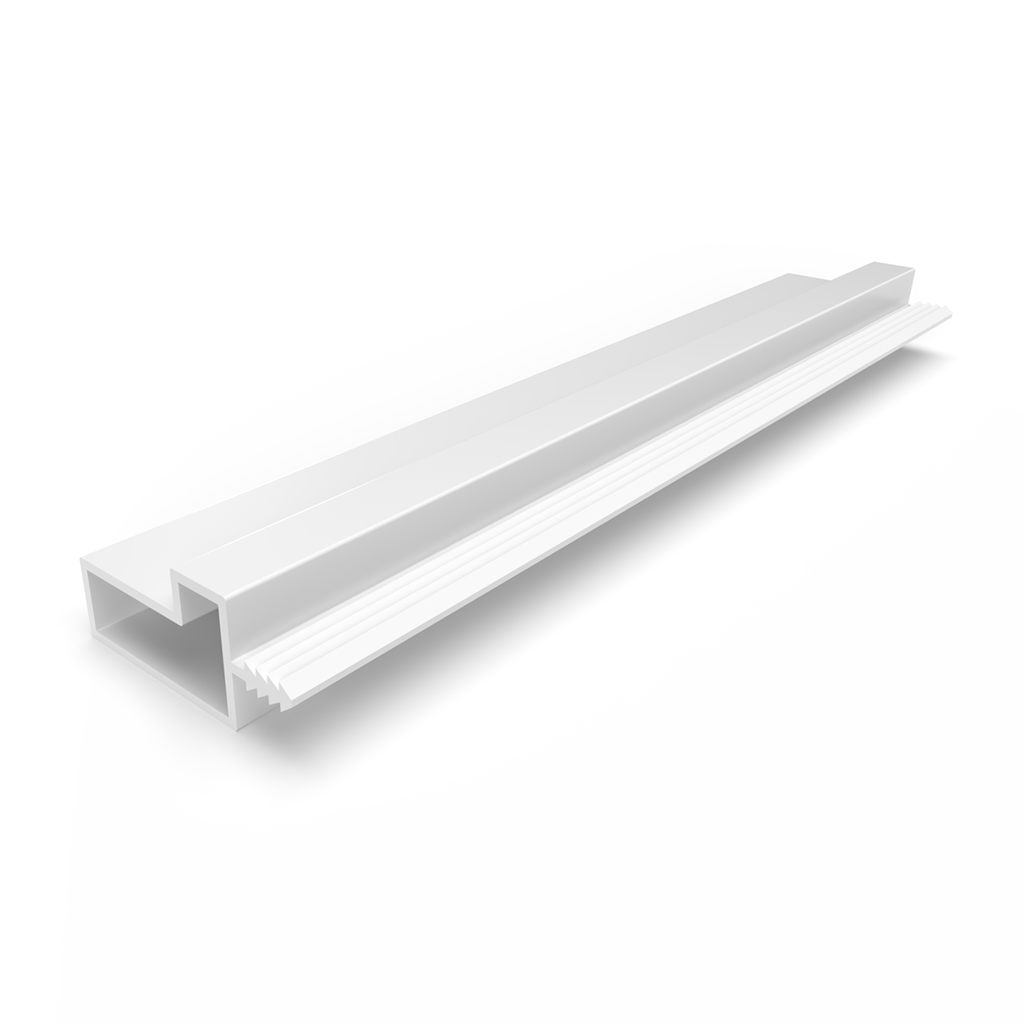

LED profile | Patrol - P28: opal polycarbonate profile for cabinet
The Patrol - P28 LED profile is designed to provide elegant and functional lighting for opal polycarbonate cabinets. With a width of 30 mm and a thickness of 18 mm, this profile is ideal for recessed and external installations, providing soft, even light. The opal finish of the polycarbonate not only provides a refined appearance but also an even spread of light. The P28 is CE, UKCA and RoHS certified, ensuring high quality and durability. The length is customizable according to design requirements.

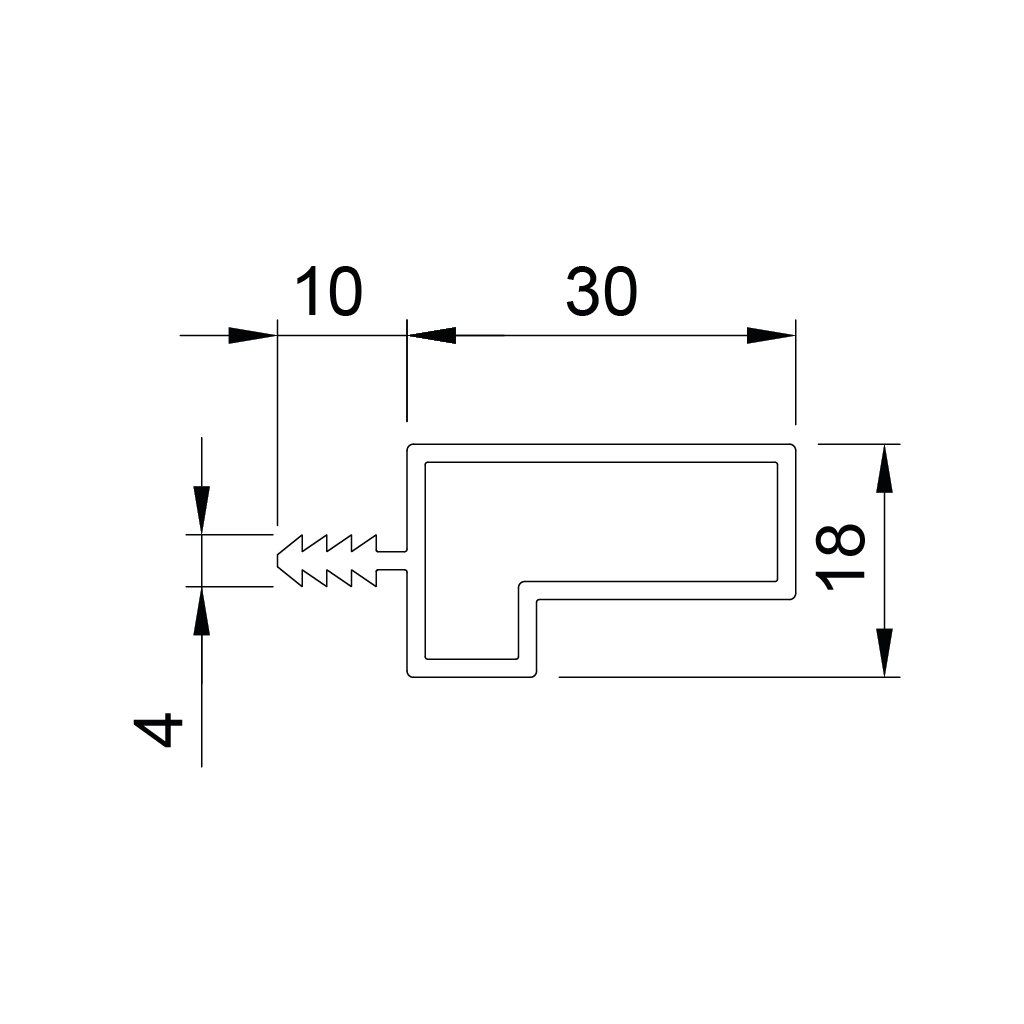

Dimensions
| Length | A misura |
| Width | 30 mm |
| Thickness | 18 mm |
Product design
| Finishes |
Opal
|
| Material | Polycarbonate |
| Product code | Width | Power | Voltage | Lumen/m (4000K) |
|---|---|---|---|---|
| ST24.5 | 5 mm | 12W/m | 24V | 1431 |
| ST25.5 | 5 mm | 7W/m | 24V | 903 |
| ST19.12 | 8 mm | 14.4W/m | 12V | 2066 |
| ST26 | 8 mm | 10W/m | 24V | 1015 |
| ST26.55 | 8 mm | 10W/m | 24V | 942 |
| ST33.12 | 8 mm | 6W/m | 12V | 711 |
| ST19.24 | 8 mm | 14.4W/m | 24V | 1993 |
| ST27.12 | 8 mm | 4.4W/m | 12V | 504 |
| ST26.12 | 8 mm | 10W/m | 12V | 1084 |
| ST22 | 8 mm | 9.5W/m | 24V | 1377 |
| ST26.1255 | 8 mm | 10W/m | 12V | 970 |
| ST33.24 | 8 mm | 6W/m | 24V | 711 |
| ST27.1255 | 8 mm | 4.4W/m | 12V | 472 |
| ST26.5 | 5 mm | 10W/m | 24V | 1084 |
| ST26.5.12 | 5 mm | 10W/m | 12V | 1076 |
| ST28.12 | 8 mm | 7W/m | 12V | 1122 |
| ST27 | 8 mm | 4.4W/m | 24V | 474 |
| ST23 | 8 mm | 11.7W/m | 24V | 1569 |
| ST43.24 | 8 mm | 8W/m | 24V | 1054 |
| ST23.55 | 8 mm | 11.7W/m | 24V | 1532 |
| ST27.55 | 8 mm | 4.4W/m | 24V | 490 |
| ST28.1255 | 8 mm | 7W/m | 12V | 982 |
| ST43.2455 | 8 mm | 8W/m | 24V | 776 |
| ST28.24 | 8 mm | 7W/m | 24V | 1125 |
| ST28.2455 | 8 mm | 7W/m | 24V | 961 |
| ST43.5 | 5 mm | 8W/m | 24V | 1050 |
| ST50.TW | 8 mm | 9.6W/m | 24V | 712 |
| ST29.5.12 | 5 mm | 7W/m | 12V | 792 |
| ST50.T23 | 8 mm | 9.6W/m | 24V | 820 |
| ST31.24 | 7.5 mm | 12W/m | 24V | 1162 |
| ST84 | 8 mm | 9.6W/m | 24V | 743 |
| ST85 | 3 mm | 4W/m | 12V | 420 |
| ST50.TW.12 | 8 mm | 9.6W/m | 12V | 674 |
| ST86 | 5 mm | 6W/m | 12V | 627 |
| ST56.T23.24.90 | 8 mm | 11.5W/m | 24V | 1160 |
| ST50.TWNA | 8 mm | 9.6W/m | 24V | 755 |
| ST90 | 8 mm | 9.6W/m | 12V | 970 |
| ST52 | 4.5 mm | 9.6W/m | 24V | 684 |
| ST59.TW | 5 mm | 4.2W/m | 24V | 417 |
| ST59.T23 | 5 mm | 4.2W/m | 24V | 474 |
| ST52.TW | 4.5 mm | 9.6W/m | 24V | 620 |
| ST60 | 8 mm | 9.6W/m | 24V | 257 |
| ST52.T23 | 4.5 mm | 9.6W/m | 24V | 680 |
| ST62.24 | 6.1 mm | 10W/m | 24V | 970 |
| ST63.24 | 8 mm | 9.6W/m | 24V | 675 |
| ST80 | 8 mm | 6W/m | 12V | 425 |
| ST82 | 8 mm | 15W/m | 24V | 1240 |
| ST53.RGB.12 | 8 mm | 10W/m | 12V | |
| ST83 | 8 mm | 7.2W/m | 24V | 675 |
| ST53.RGB.24 | 8 mm | 10W/m | 24V | |
| ST53.RGB.2455 | 8 mm | 24V |
