Duplex - P58

Aluminum LED profile

LED Profiles

Aluminum LED profile for cabinet

Typology

External

Installation

Cabinet, Base

Certifications

Product details

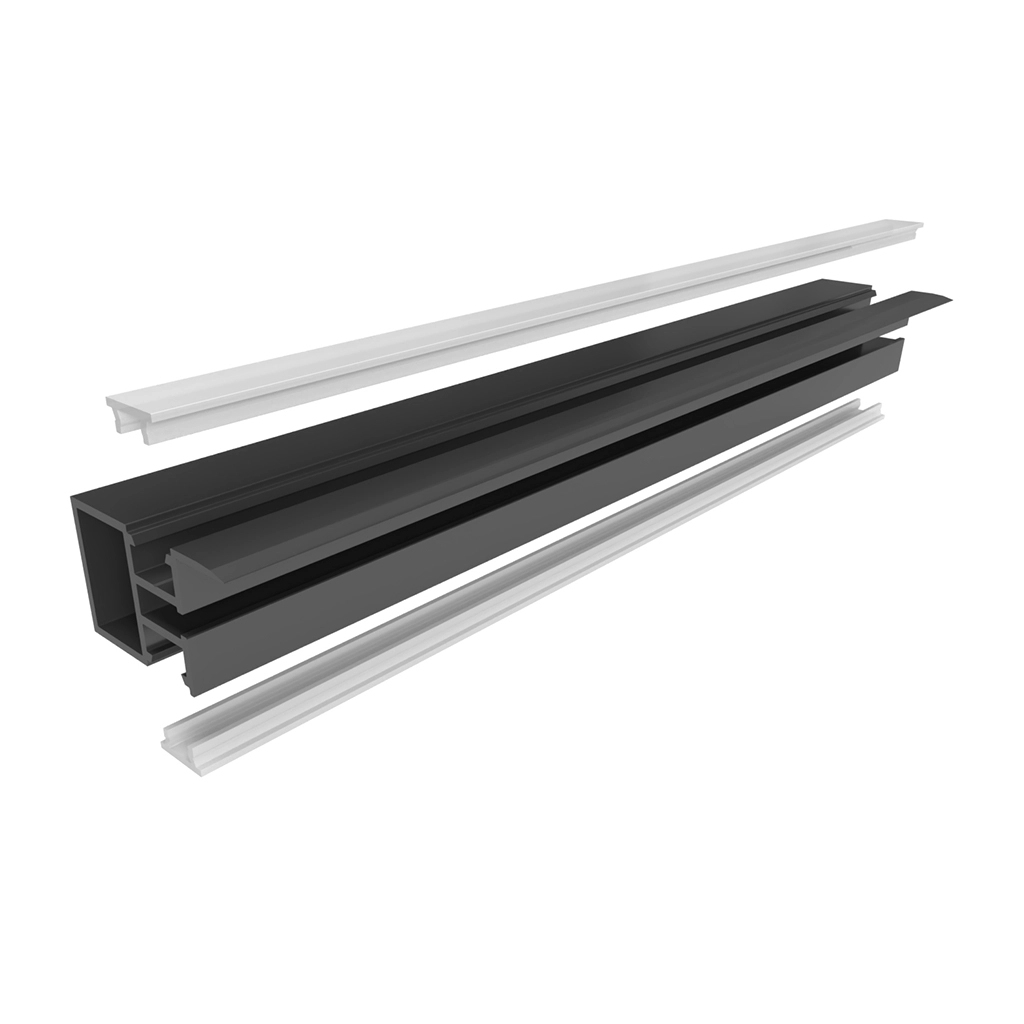

LED profile | Duplex - P58: external aluminum profile

The Duplex - P58 LED profile is designed for external applications specifically for wall units and features an aluminum structure with dimensions of 32 mm x 19 mm. The profile features integration options with touch and dimmer ignitions, offering versatile, high-quality lighting. Available in black finish, the Duplex P58 is UL Listed, CE, UKCA, RoHS, and CL3 certified, ensuring reliability and compliance with safety standards. The length is customizable according to design requirements.

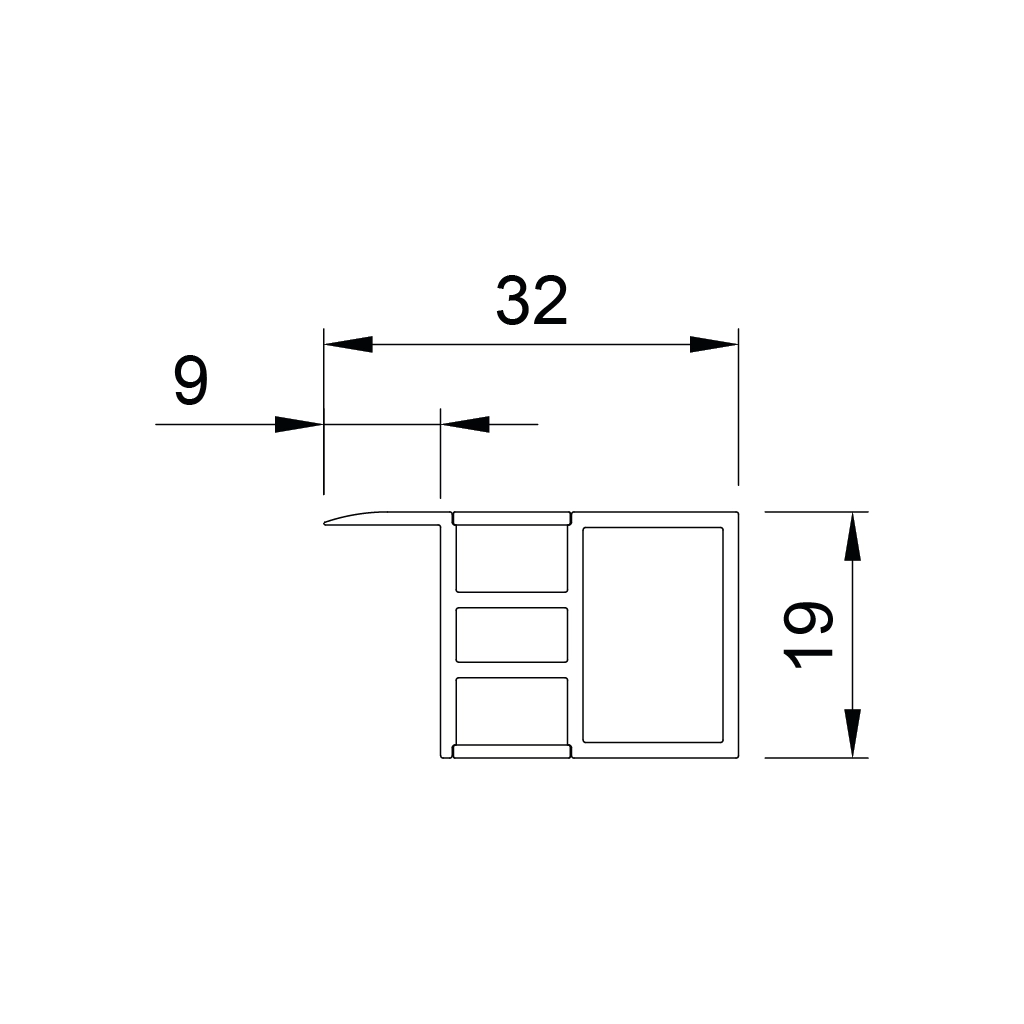

Dimensions

Length	A misura
Width	32 mm
Thickness	19 mm

Product design

Finishes

Black

Screen color	White
Material	Aluminum

Product code	Width	Power	Voltage	Lumen/m (4000K)
ST24.5	5 mm	12W/m	24V	1431
ST25.5	5 mm	7W/m	24V	903
ST26.5	5 mm	10W/m	24V	1084
ST26.5.12	5 mm	10W/m	12V	1076
ST43.5	5 mm	8W/m	24V	1050
ST29.5.12	5 mm	7W/m	12V	792
ST85	3 mm	4W/m	12V	420
ST86	5 mm	6W/m	12V	627
ST52	4.5 mm	9.6W/m	24V	684
ST59.TW	5 mm	4.2W/m	24V	417
ST59.T23	5 mm	4.2W/m	24V	474
ST52.TW	4.5 mm	9.6W/m	24V	620
ST52.T23	4.5 mm	9.6W/m	24V	680
