t689 12v75 t689 24v75 voltage regulated power supply 75w 12v 24v 1

T689.12V75 | T689.24V75

Voltage regulated power supply 75W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 75W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689.12V75 | T689.24V75 - 75W, 12V-24V DC (constant voltage)

The T689.12V75 | T689.24V75 power supply offers 75W power with a constant variable voltage of 12V and 24V DC. This unwired model is ideal for projects that need a stable and safe power supply for LED applications. CE, UKCA, RoHS certified and CL2 compliant, the power supply also includes TÜV certification. Equipped with Class 2 protection, the T689.12V75 | T689.24V75 features advanced safety mechanisms against short circuits, overvoltages and overloads, and offers thermal protection. With an IP20 rating, it is designed for indoor use and does not support dimming. This power supply is particularly suitable for residential and commercial environments, such as kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa spaces, ensuring a reliable and compliant power supply for your LED systems.

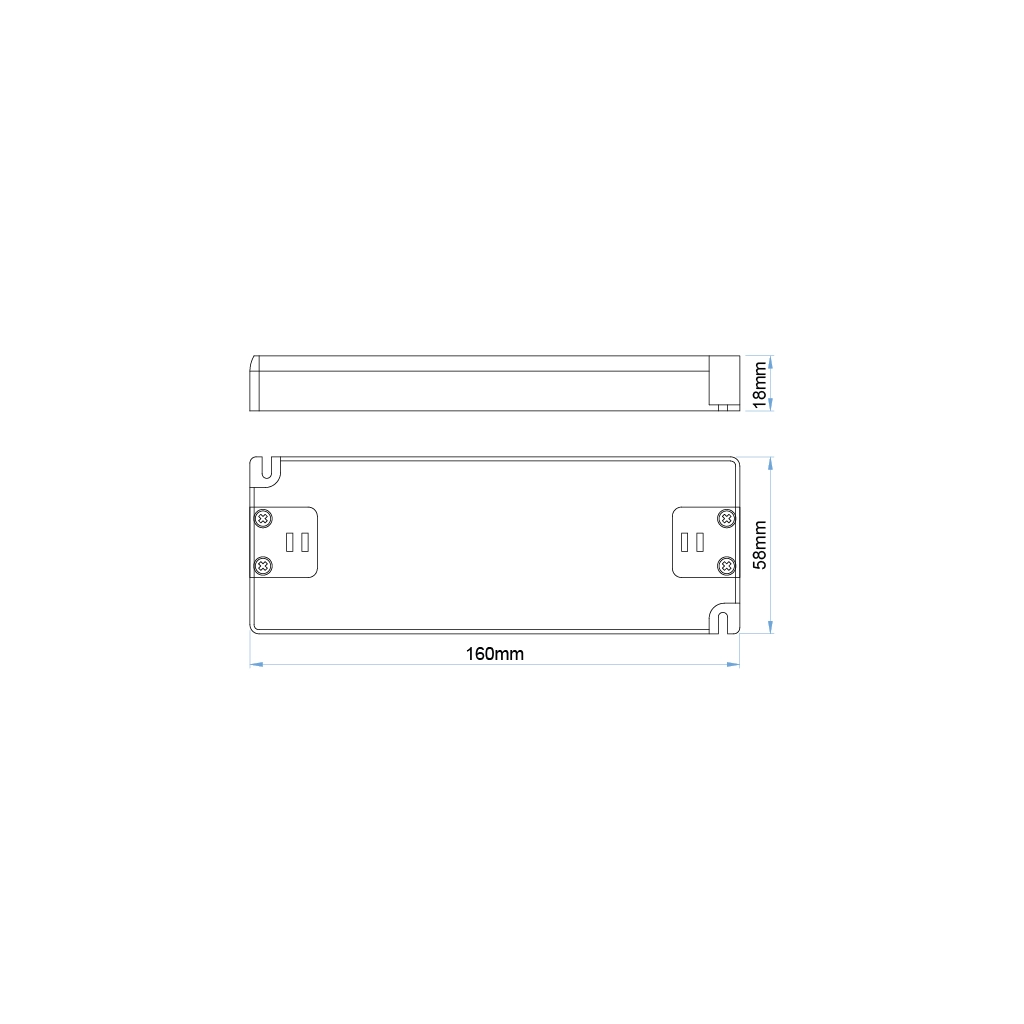

Dimensions

Length	160 mm
Width	58 mm
Thickness	18 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V75	220~240V 50/60Hz	75W	12V DC		45°C	85°C
T689.24V75	220~240V 50/60Hz	75W	24V DC		45°C	85°C
