T689.12V30SLIM | T689.24V30SLIM

Voltage regulated power supply 30W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 30W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

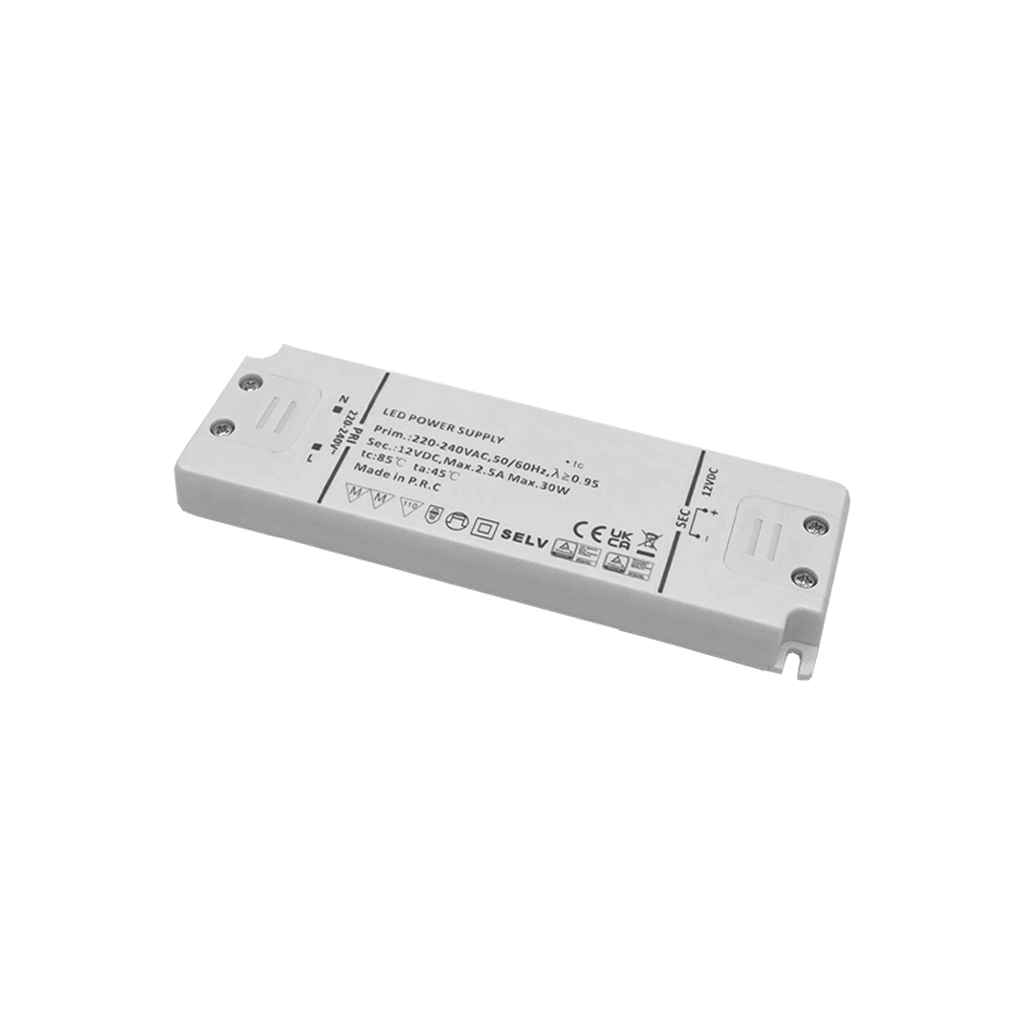

Power supply T689.12V30SLIM | T689.24V30SLIM - 30W, 12V-24V DC (constant voltage)

The T689.12V30SLIM | T689.24V30SLIM power supply offers 30W power with a constant voltage of 12V-24V DC, perfect for LED lighting applications that require a stable and safe power supply. This unwired model is designed to meet various regulatory requirements. CE, UKCA, RoHS and TÜV certified, it ensures compliance with safety regulations. The T689.12V30SLIM | T689.24V30SLIM has class 2 protection and includes thermal and short-circuit, overvoltage and overload protection measures. The IP20 rating is suitable for indoor installations and does not support dimming. Ideal for environments such as kitchens, bathrooms, living rooms and bedrooms, as well as contract and HoReCa projects, it offers a reliable and compliant solution for your LED lighting systems.

Dimensions

Length	154 mm
Width	50 mm
Thickness	14 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V30SLIM	220~240V 50/60Hz	30W	12V DC		45°C	85°C
T689.24V30SLIM	220~240V 50/60Hz	30W	24V DC		45°C	85°C

Technical data sheet

t689 12v30slim t689 24v30slim datasheet

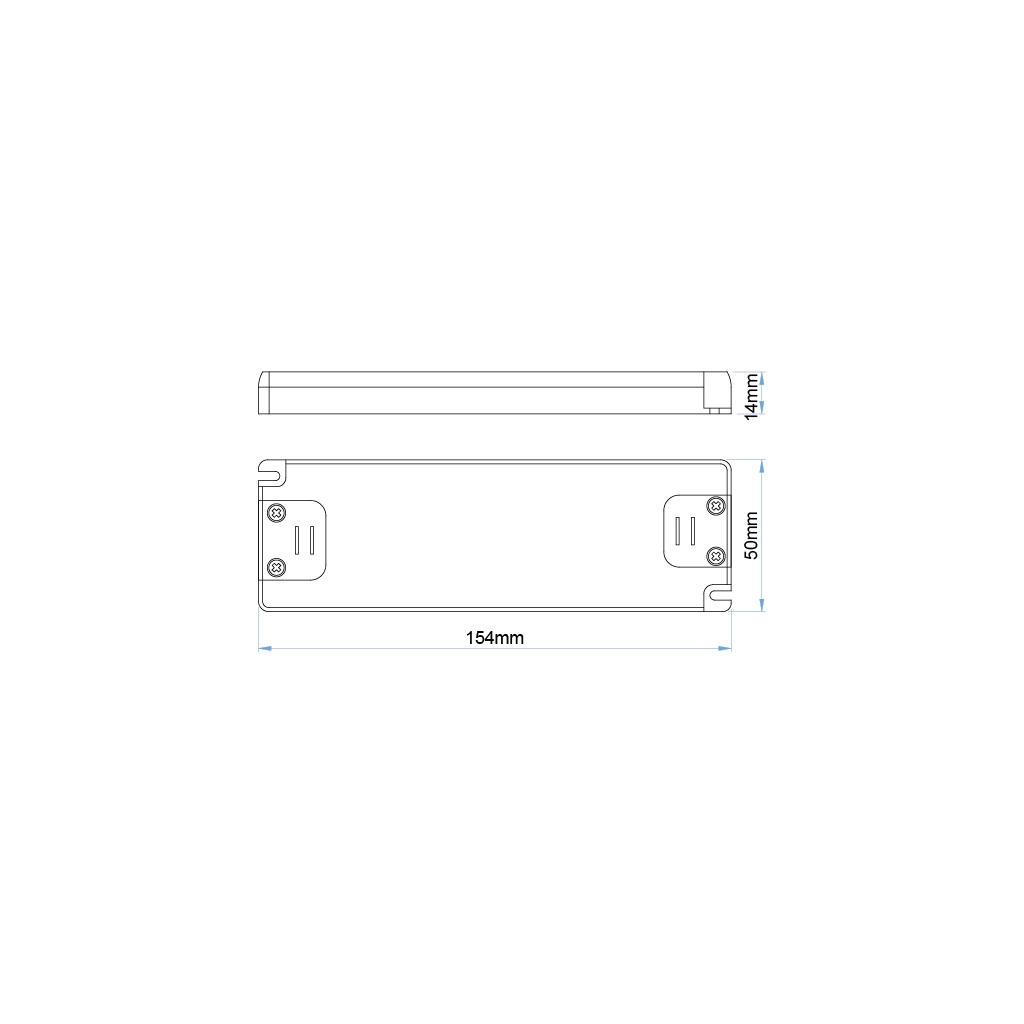

Technical drawing

t689 12v30slim t689 24v30slim technical drawing
