t689 12v20 e t689 24v20 e voltage regulated power supply 20w 12v 24v 1

T689.12V20-E | T689.24V20-E

Voltage regulated power supply 20W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 20W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689.12V20-E | T689.24V20-E - 20W, 12V-24V DC (constant voltage)

The T689.12V20-E and T689.24V20-E power supply provides a constant voltage of 12V-24V DC with an output of 20W, suitable for LED applications. This unwired model is CE, UKCA, RoHS and CCC certified, as well as TÜV certified, while ensuring Class 2 protection. Equipped with thermal protection and advanced safety systems against short circuits, mains overvoltages and overloads, this power supply is designed to meet standards in terms of efficiency. With an IP20 rating, it is suitable for indoor installations and does not support dimming. Ideal for use in kitchens, bathrooms, living rooms and bedrooms, and for contract and HoReCa environments, this power supply is a reliable and compliant solution for LED lighting systems.

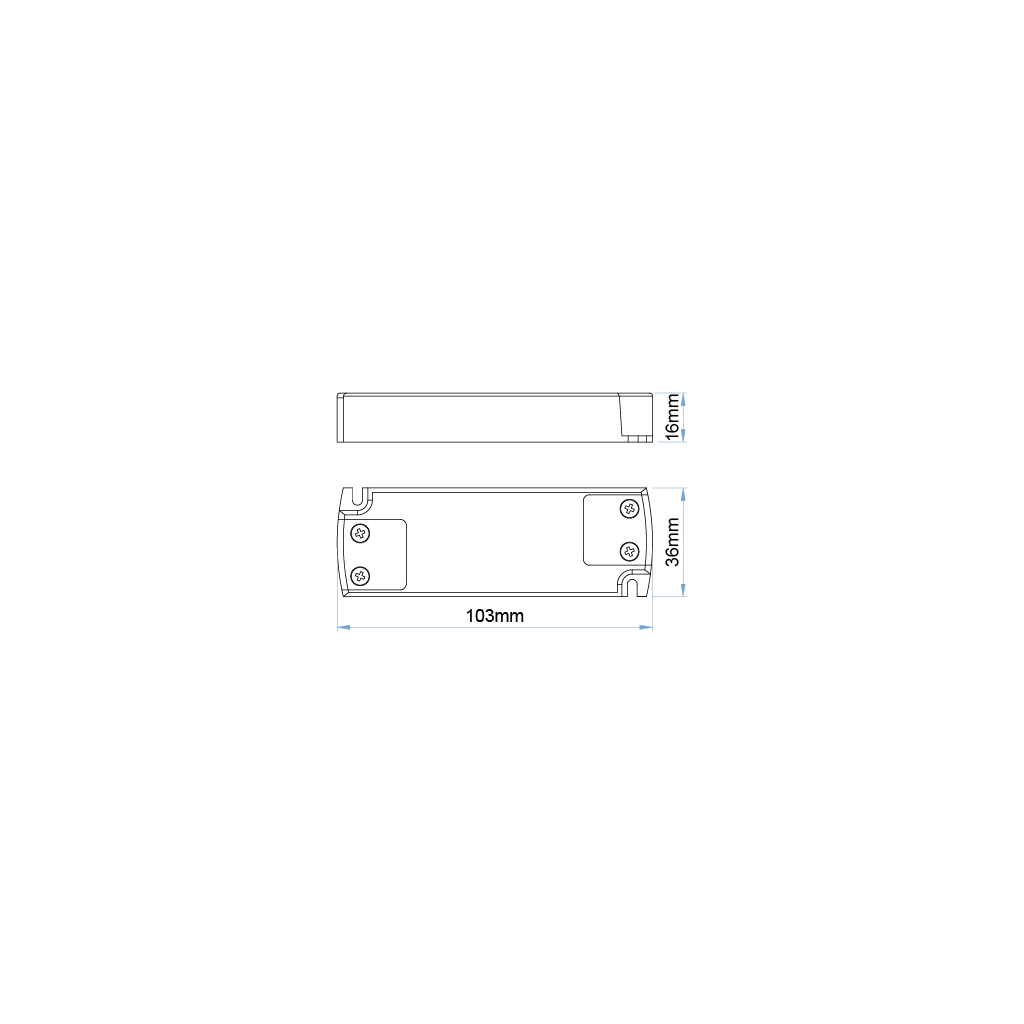

Dimensions

Length	103 mm
Width	36 mm
Thickness	16 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V20-E	200~240V 50/60Hz	20W	12V DC		45°C	85°C
T689.24V20-E	200~240V 50/60Hz	20W	24V DC		45°C	85°C
