T689.12V10UE | T689.24V10UE

Voltage regulated power supply 10W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 10W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689.12V10UE | T689.24V10UE - 10W, 12V-24V DC (constant voltage)

The T689.12V10UE | T689.24V10UE power supply is designed to offer a constant voltage of 12V-24V DC with a power output of 10W, ideal for LED lighting applications. This unwired model combines efficiency and compliance with safety standards. UL Recognized, CE, RoHS and CCC certified, this power supply meets international standards, including Class 2 protection and compliance with ENEC 05 standards. It offers protections against short circuits, mains overvoltages and overloads, and features thermal protection to prevent overheating damage. With an IP20 rating, it is suitable for indoor use and does not include dimming functionality. Suitable for use in kitchens, bathrooms, living rooms, bedrooms, and in contract and HoReCa environments, this power supply is a robust and compliant solution for LED lighting applications.

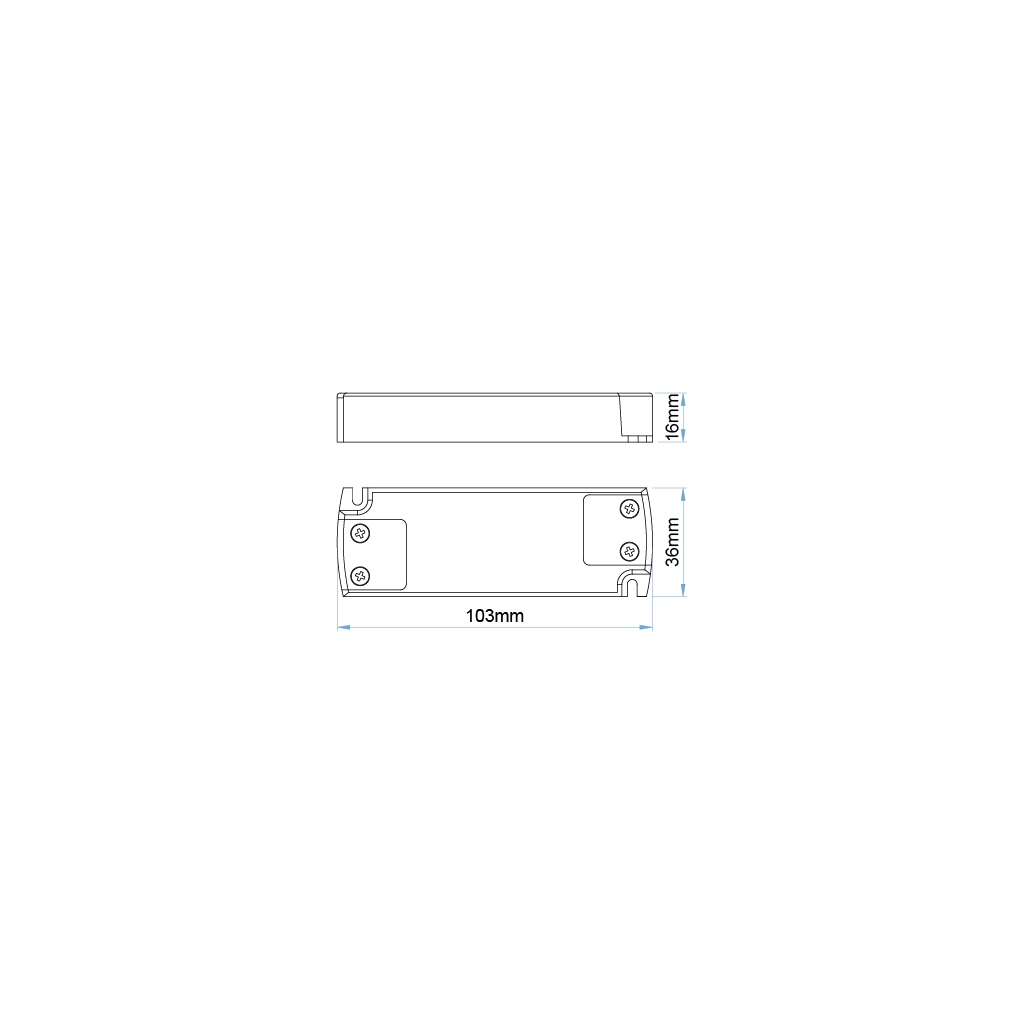

Dimensions

Length	103 mm
Width	36 mm
Thickness	16 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V10UE	100~240V 50/60Hz	10W	12V DC		45°C	85°C
T689.24V10UE	100~240V 50/60Hz	10W	24V DC		45°C	85°C
