t689 12v50 1 t689 24v50 1 voltage regulated power supply 50w 12v 24v 1

T689.12V50-1 | T689.24V50-1

Voltage regulated power supply 50W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 50W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689.12V50-1 | T689.24V50-1 - 50W, 12V-24V DC (constant voltage)

The T689.12V50-1 | T689.24V50-1 is a power supply designed to provide 50W power with a constant voltage of 12V-24V DC, ideal for various LED applications. This unwired model is designed for high performance and safety. CE, UKCA, RoHS and TÜV certified, this power supply meets quality standards. The T689.12V50-1 / T689.24V50-1 offers class 2 protection and incorporates safety measures such as thermal, short-circuit, overvoltage and overload protection. With an IP20 rating, it is designed for indoor environments and does not include dimmable features. Suitable for uses in kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa spaces, this power supply is an excellent choice for those seeking a reliable and compliant solution for LED lighting projects.

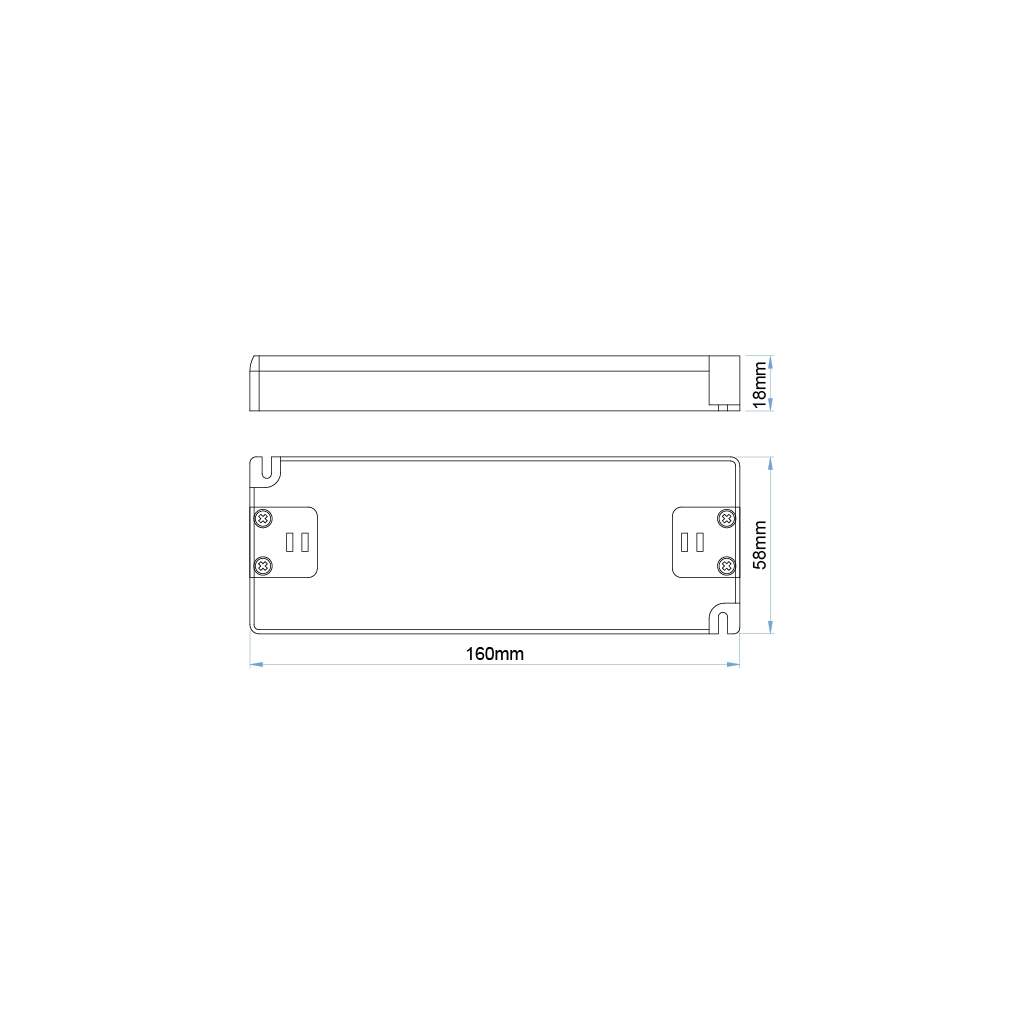

Dimensions

Length	160 mm
Width	58 mm
Thickness	18 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V50-1	200~240V 50/60Hz	50W	12V DC		45°C	85°C
T689.24V50-1	200~240V 50/60Hz	50W	24V DC		45°C	85°C
