t682 10 current regulated power supply 10w 5w 350ma 1

T682.10

Current regulated power supply 10W-5W 350mA

Power supplies

Unwired current regulated power supply 10W-5W 350mA

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T682.10 - 10W/5W, 350mA (constant current)

The T682.10 power supply is designed to power LED lighting systems, ranging from 5W to 10W. This unwired constant-current power supply has been developed to ensure excellent performance in accordance with international standards. The T682.10 power supply is UL Recognized, CE, UKCA, RoHS and CCC certified, ensuring that it meets high quality and safety standards. Compliant with ENEC 05 standards and Class 2 protection, this power supply includes protections against short circuits, mains overvoltages and overloads, and has thermal protection to prevent overheating. The IP20 rating is optimal for indoor installations and offers no dimmable functionality. Suitable for residential and commercial uses, the T682.10 is perfectly suited for environments such as kitchens, bathrooms, living rooms, and bedrooms, as well as applications in contract and HoReCa sectors.

Dimensions

Length	126 mm
Width	38 mm
Thickness	21 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T682.10	100~240V 50/60Hz	10W (230V) 5W (110V)		350mA	-25° +50/60°C	80°C
T695.24V150	88~264V 47/63Hz	150W	24V DC		-30° +45°C	70°C

Technical data sheet

t682 10 datasheet

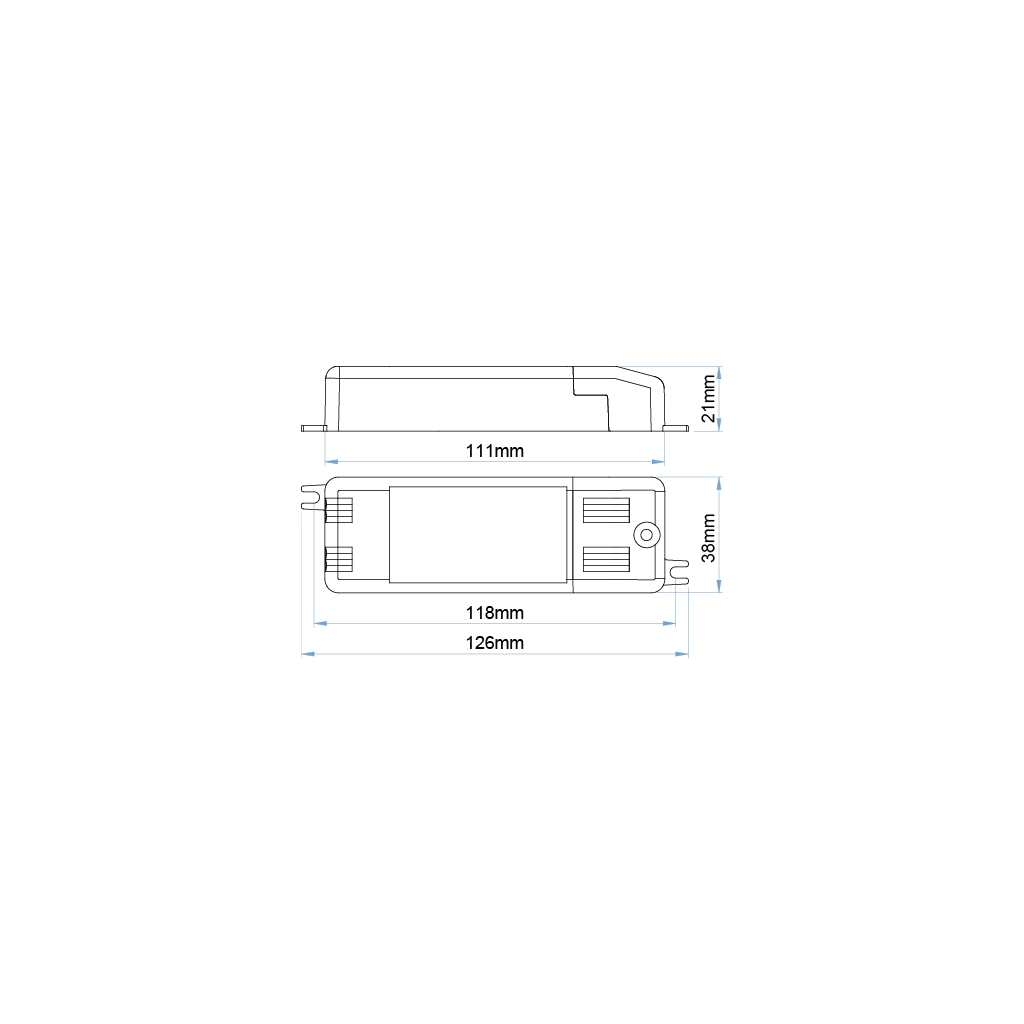

Technical drawing

t682 10 technical drawing
