K12LED.75W12VUSANP | K12LED.75W24VUSANP

Voltage regulated power supply 75W 12V-24V DC

Power supplies

Wired voltage regulated power supply kit without plug 75W 12V-24V DC

Wiring

Wired power supply

Certifications

Product details

More information
Download

Power supply K12LED.75W12VUSANP | K12LED.75W24VUSANP - 75W, 12V-24V DC (constant voltage)

The K12LED.75W12VUSANP | K12LED.75W24VUSANP power supply is a 75W wired power supply with a constant voltage of 12V or 24V DC, depending on the version chosen. This unplugged model is designed to provide a stable and safe power supply for LED applications. UL recognized, CE, RoHS certified, the K12LED.75W12VUSANP | K12LED.75W12VUSANP offers class 2 protection and features safety measures such as thermal protection, short circuit protection, overvoltage protection, and overload protection. With an IP20 rating, it is suitable for indoor installation and does not support dimming. Ideal for home and commercial environments such as kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa spaces, this power supply is a reliable solution for your LED lighting projects.

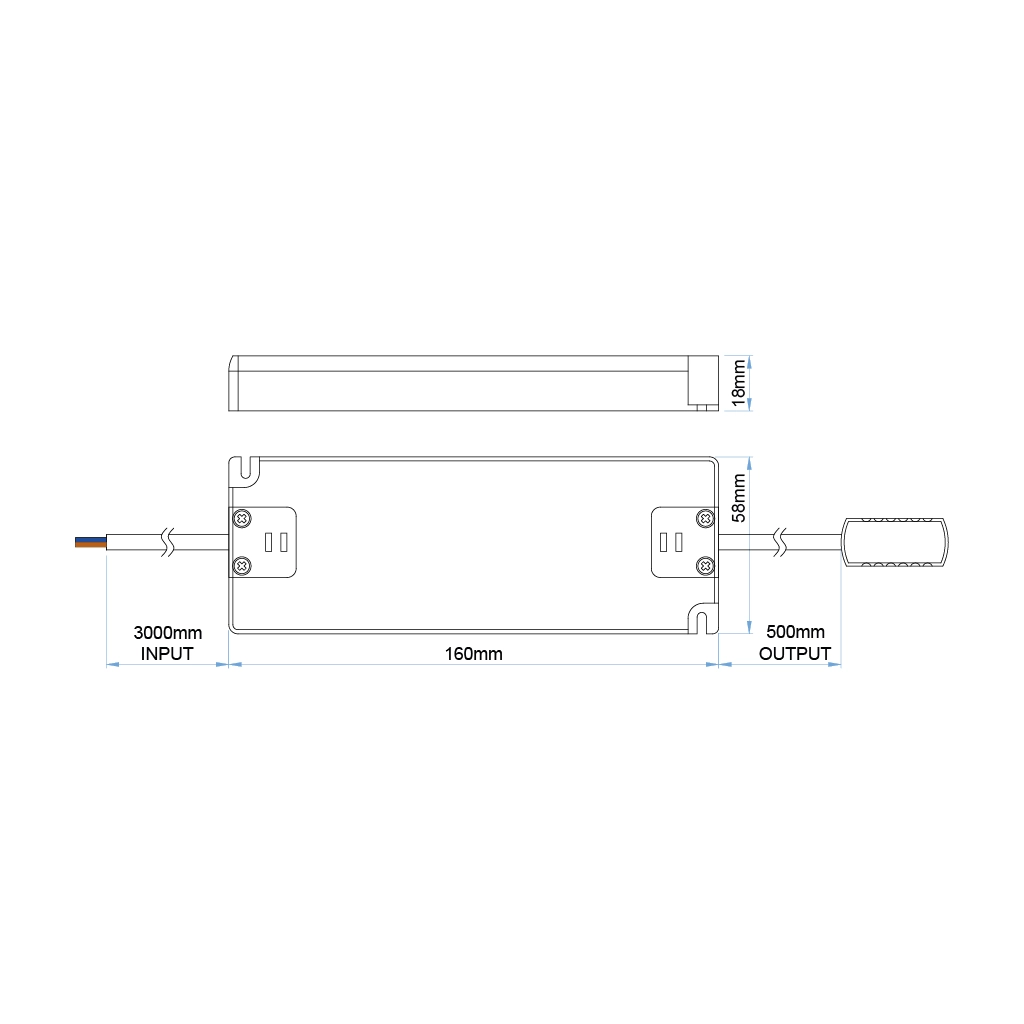

Dimensions

Length	160 mm
Width	58 mm
Thickness	18 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
K12LED.75W12VUSANP	120V 60Hz	75W	12V DC		45°C	85°C
K12LED.75W24VUSANP	120V 60Hz	75W	24V DC		45°C	85°C
