T689.12V75.60UE | T689.24V75.60UE

Voltage regulated power supply 60W-75W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 60W-75W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689.12V75.60UE | T689.24V75.60UE - 60W-75W, 12V-24V DC (constant voltage)

The T689.12V75.60UE | T689.24V75.60UE power supply offers 60W-75W regulated power with constant voltage of 12V or 24V DC, depending on the version selected. This UL recognized, unwired power supply is designed to provide a safe power supply for LED applications. UL recognized, CE, RoHS certified, the T689.12V75.60UE | T689.24V75.60UE provides class 2 protection and includes safety measures such as thermal, short circuit, overvoltage and overload protection. Rated IP20, it is intended for indoor use and is not dimmable. Ideal for kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa spaces, this power supply is a suitable choice for your LED lighting projects.

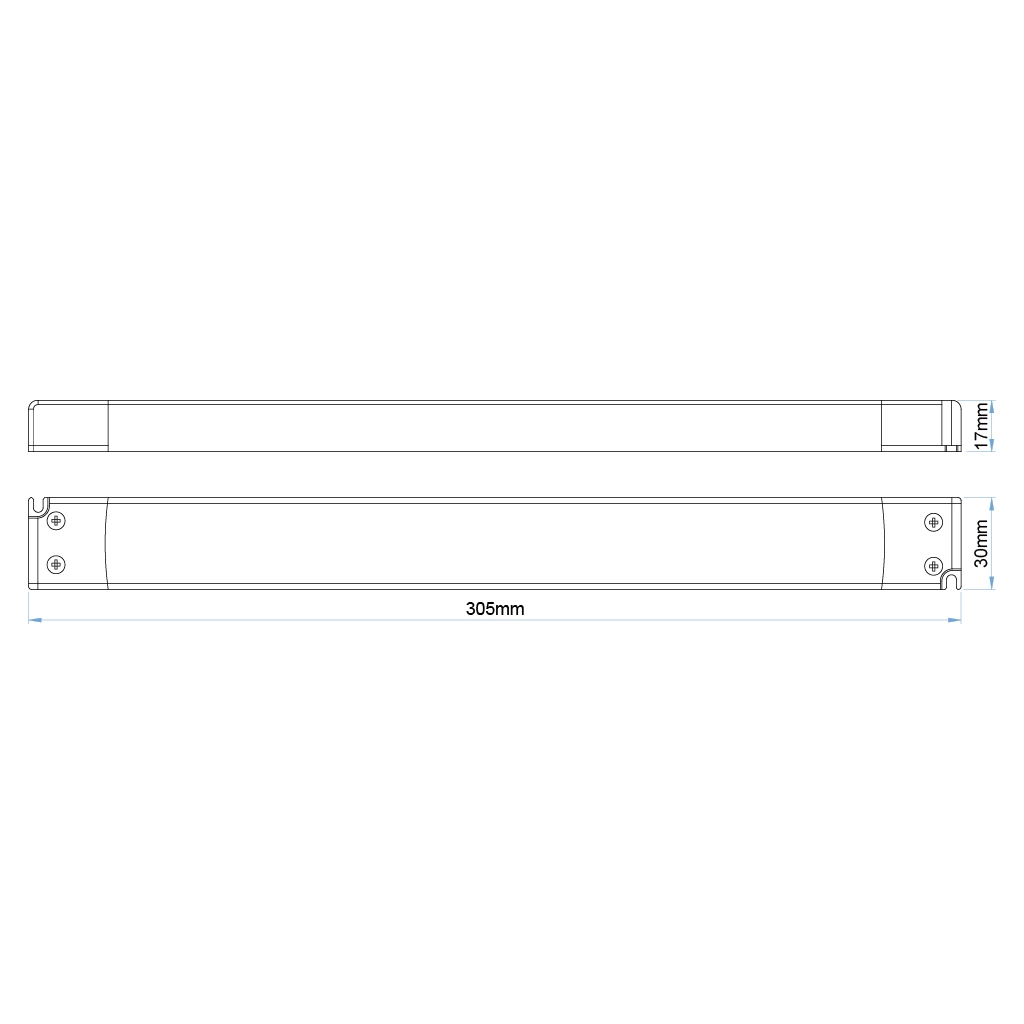

Dimensions

Length	305 mm
Width	30 mm
Thickness	17 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V75.60UE	100~240V 50/60Hz	60/75W	12V DC		45°C	80°C
T689.24V75.60UE	100~240V 50/60Hz	60/75W	24V DC		45°C	80°C

Technical data sheet

t689 12v75 60ue t689 24v75 60ue datasheet

Technical drawing

t689 12v75 60ue t689 24v75 60ue technical drawing
