T689.12V75USA | T689.24V75USA

Voltage regulated power supply 75W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 75W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689.12V75USA | T689.24V75USA - 75W, 12V-24V DC (constant voltage)

The T689.12V75USA | T689.24V75USA is a 75W constant voltage power supply of 12V or 24V DC, depending on the model. This UL recognized, non-wired power supply is designed to provide a safe and stable power supply for your LED installations. UL recognized, CE, RoHS certified, the T689.12V75USA | T689.24V75USA includes class 2 protections and protection against short circuits, overvoltages and overloads. With an IP20 rating, it is suitable for indoor installations and is not dimmable. Perfect for residential and commercial environments, including kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa spaces, this power supply offers a safe and reliable solution for your LED lighting projects.

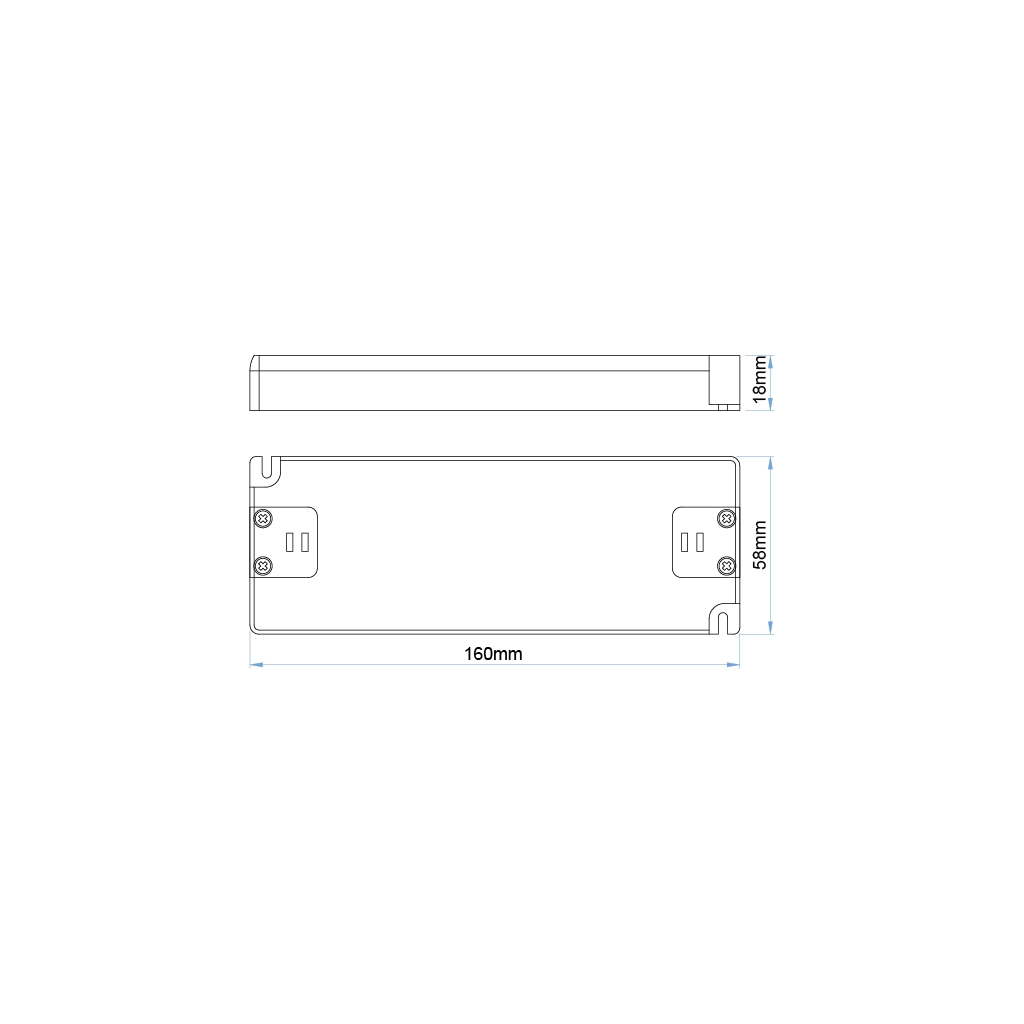

Dimensions

Length	160 mm
Width	58 mm
Thickness	18 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689.12V75USA	100~240V 50/60Hz	75W	12V DC		40°C	80°C
T689.24V75USA	100~240V 50/60Hz	75W	24V DC		40°C	80°C
