T685.12V75W44 | T685.24V75W44

Voltage regulated power supply 75W 12V-24V DC

Power supplies

Wired voltage regulated power supply 75W 12V-24V DC

Wiring

Wired power supply

Certifications

Product details

More information
Download

Power supply T685.12V75W44 | T685.24V20W44 - 75W, 12V-24V DC (constant voltage)

The T685.12V75W44 | T685.24V75W44 power supply is a 75W constant voltage power supply with 12V-24V DC output. This wired power supply is designed to provide stable and protected current. CE, UKCA and RoHS certified and IP44 rated, the T685.12V75W44 | T685.24V75W44 offers advanced protections against short circuits, overheating and overloading. Its construction makes it suitable for kitchens, bathrooms, living rooms and bedrooms, as well as contract and HoReCa spaces, this power supply ensures safe and long-lasting operation for your lighting applications.

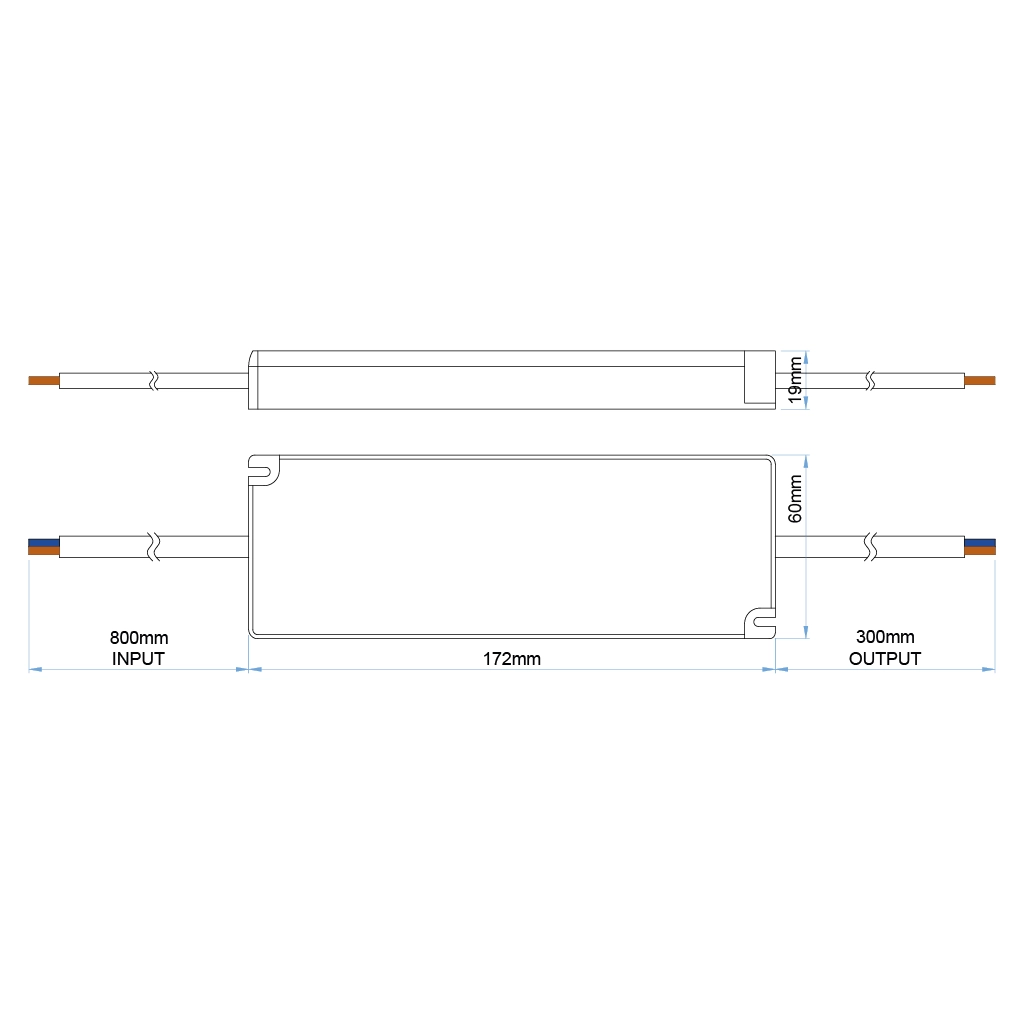

Dimensions

Length	172 mm
Width	60 mm
Thickness	19 mm

IP Rate

IP44

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T685.12V75W44	200~240V 50/60Hz	75W	12V DC		40°C	85°C
T685.24V75W44	200~240V 50/60Hz	75W	24V DC		40°C	85°C
