T685.12V30W44 | T685.24V30W44

Voltage regulated power supply 30W 1V-24V DC

Power supplies

Wired voltage regulated power supply 30W 12V-24V DC

Wiring

Wired power supply

Certifications

Product details

More information
Download

Power supply T685.12V30W44 | T685.24V30W44 - 30W, 12V-24V DC (constant voltage)

The T685.12V30W44 | T685.24V30W44 is a 30W constant voltage wired power supply with 12V-24V DC output voltage. This device is designed to provide a constant and safe power supply for various uses. Equipped with CE, UKCA and RoHS certifications, and IP44-rated, the T685.12V30W44 | T685.24V30W44 provides comprehensive protections against short circuits, overheating and overloads. Its design makes it suitable for indoor installations, ideal for kitchens, bathrooms, living rooms and bedrooms, as well as contract and HoReCa environments, this power supply is a safe and reliable choice for your lighting needs.

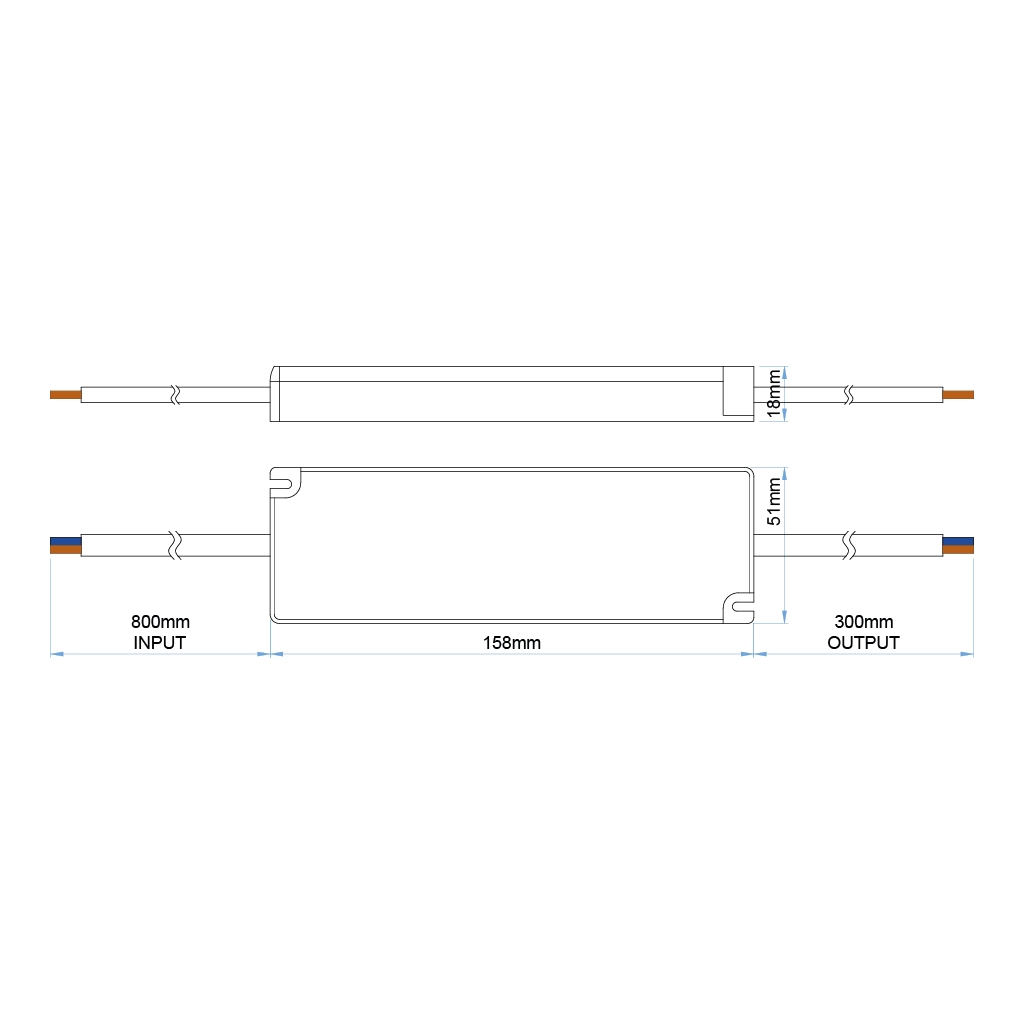

Dimensions

Length	158 mm
Width	51 mm
Thickness	18 mm

IP Rate

IP44

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T685.12V30W44	200~240V 50/60Hz	30W	12V DC		45°C	85°C
T685.24V30W44	200~240V 50/60Hz	30W	24V DC		45°C	85°C
