T685.12V20W44 | T685.24V20W44

Voltage regulated power supply 20W 12V-24V DC

Power supplies

Wired voltage regulated power supply 20W 12V-24V DC

Wiring

Wired power supply

Certifications

Product details

More information
Download

Power supply T685.12V20W44 | T685.24V20W44 - 20W, 12V-24V DC (constant voltage)

The T685.12V20W44 | T685.24V20W44 is a 20W constant voltage power supply with 12V-24V DC output. This wired model is designed for applications requiring a protected and stable power supply. CE, UKCA and RoHS certified, and conforming to IP44 standards, the T685.12V20W44 | T685.24V20W44 has short-circuit, overheating and overload protections. It is suitable for indoor installations and has an IP44 rating. Suitable for residential and commercial environments such as kitchens, bathrooms, living rooms and bedrooms, this power supply offers an effective and safe solution for your lighting projects.

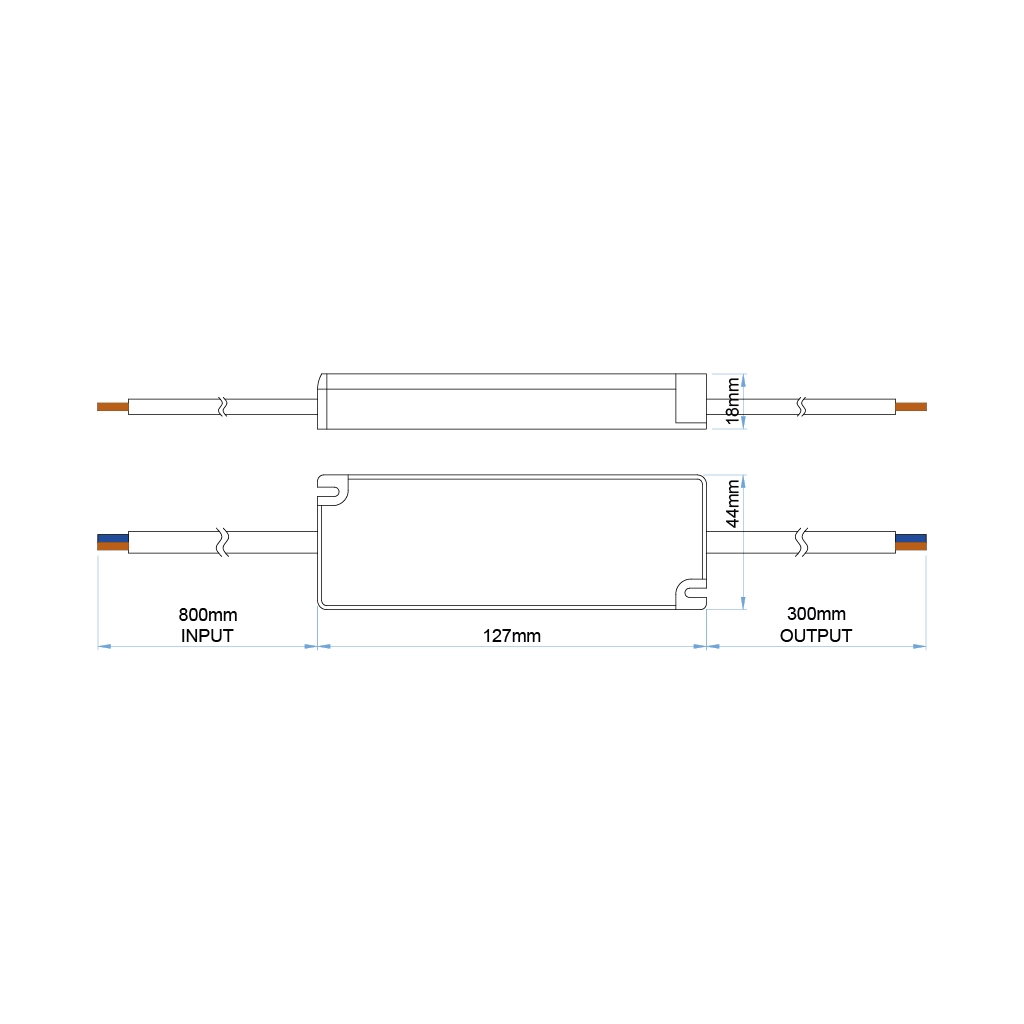

Dimensions

Length	127 mm
Width	44 mm
Thickness	18 mm

IP Rate

IP44

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T685.12V20W44	200~240V 50/60Hz	20W	12V DC		45°C	85°C
T685.24V20W44	200~240V 50/60Hz	20W	24V DC		45°C	85°C
