t689d 12v80utr t689d 24v80utr voltage regulated power supply 80w 12v 24v 1

T689D.12V80UTR | T689D.24V80UTR

Voltage regulated power supply 80W 12V-24V DC

Power supplies

Unwired voltage regulated power supply 80W 12V-24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689D.12V80UTR | T689D.24V80UTR - 80W, 12V-24V DC (constant voltage and dimmable)

The T689D.12V80UTR | T689D.24V80UTR is an 80W power supply with a constant voltage of 12V-24V DC. This non-wired model is ideal for LED applications that require a stable power supply and advanced dimming options. UL recognized, CE, RoHS certified and CL2 compliant, the T689D.12V80UTR | T689D.24V80UTR also includes TÜV certification. It provides class 2 protection and includes safety mechanisms such as thermal protection and against short circuits, overvoltages and overloads. The IP20 rating makes it suitable for indoor environments and supports Triac dimming. Perfect for uses in kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa environments, this power supply is an excellent choice for your LED lighting projects with lighting versatility needs.

Dimensions

Length	217 mm
Width	60 mm
Thickness	21 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689D.12V80UTR	120V 50/60Hz	80W	12V DC		40°C	90°C
T689D.24V80UTR	120V 50/60Hz	80W	24V DC		40°C	90°C

Technical data sheet

t689d 12v80utr t689d 24v80utr datasheet

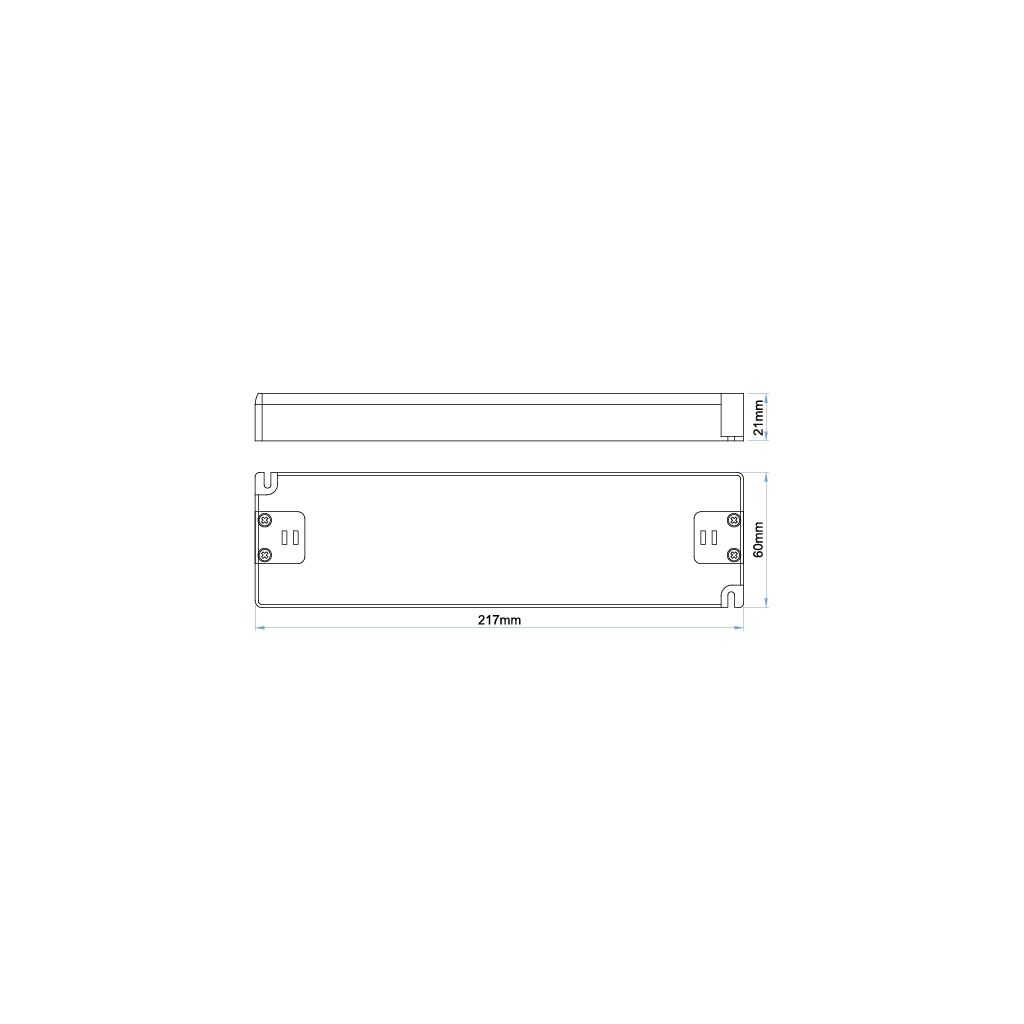

Technical drawing

t689d 12v80utr t689d 24v80utr technical drawing
