T689D.24V
Voltage regulated power supply 40W-200W 24V DC dimmable
Power supplies
Unwired voltage regulated power supply 40W-200W 24V DC. DALI/1 - 10V/0 - 10V/PUSH dimmable
Wiring
Unwired power supply
Certifications
Product details
Power supply T689D.24V - 40W-200W, 24V DC (constant voltage and dimmable)
The T689D.24V power supply is a versatile solution for applications requiring a constant voltage of 24V DC with power ranging from 40W to 200W. This unwired model is designed to offer reliable LED power supply with dimming options. CE, UKCA, RoHS certified and CL2 compliant, the T689D.24V has TÜV certification. It offers Class 2 protection and includes advanced safety measures such as thermal protection and protection against short circuits, overvoltages and overloads. The IP20 rating makes it suitable for indoor environments. It supports DALI, 1-10V, 0-10V and PUSH dimming. Ideal for environments such as kitchens, bathrooms, living rooms and bedrooms, as well as contract and HoReCa applications, this power supply provides a versatile and compliant solution for LED lighting projects.

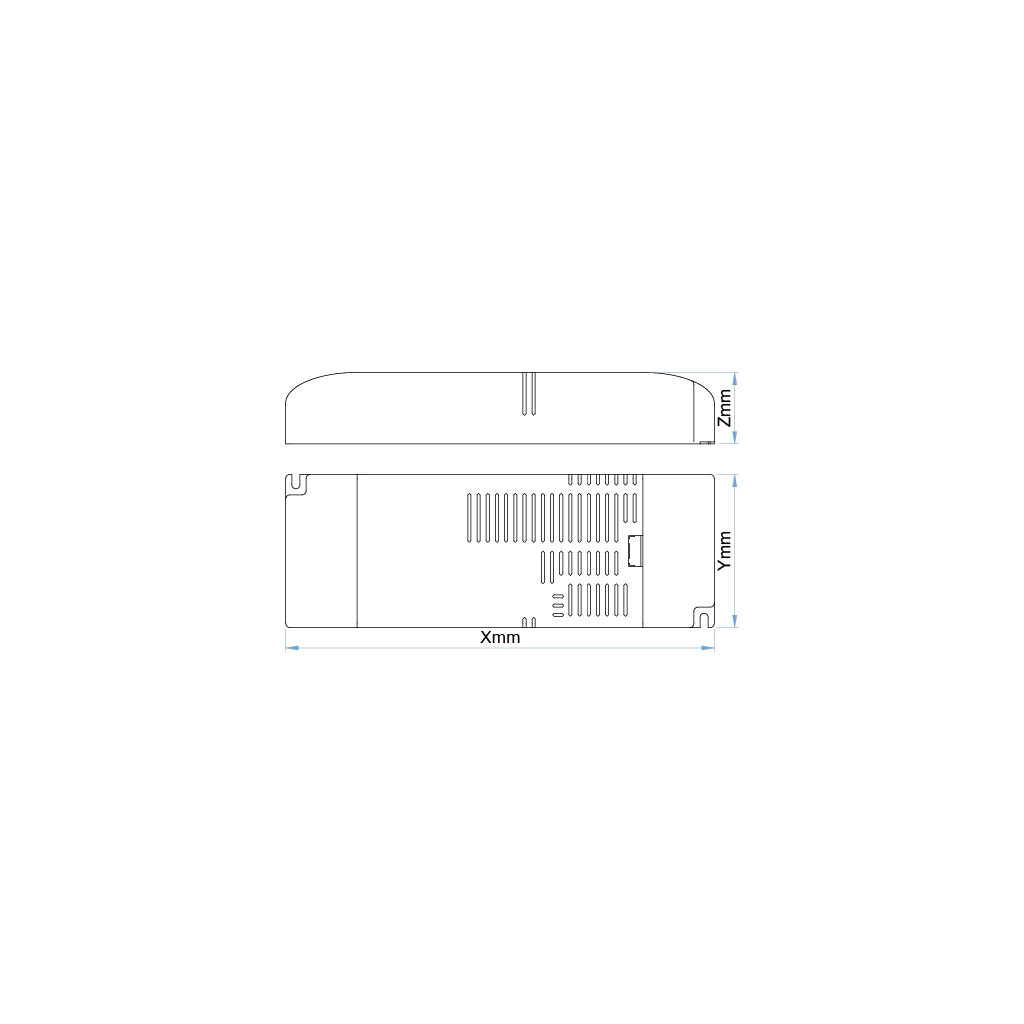

Dimensions
| Length | X mm |
| Width | Y mm |
| Thickness | Z mm |
IP Rate
IP20
| Product code | Power supply | Power | Output voltage | Output current | Ta | Tc |
|---|---|---|---|---|---|---|
| T689D.24V60 | 230V - 110V 50/60Hz | 60W - 40W | 24V DC | -10° +40°C | 70°C | |
| T689D.24V100 | 230V - 110V 50/60Hz | 100W - 60W | 24V DC | -10° +40°C | 70°C | |
| T689D.24V150 | 230V - 110V 50/60Hz | 150W - 60W | 24V DC | -10° +40°C | 80°C | |
| T689D.24V200 | 230V - 110V 50/60Hz | 200W - 90W | 24V DC | -10° +40°C | 80°C |
