t689cb 24v75 voltage regulated power supply 75w 24v 1

T689CB.24V75

Voltage regulated power supply 75W 24V DC

Power supplies

Unwired voltage regulated power supply 75W 24V DC

Wiring

Unwired power supply

Certifications

Product details

More information
Download

Power supply T689CB.24V75 - 75W, 24V DC (constant voltage)

The T689CB.24V75 is a power supply that provides 75W power with a constant voltage of 24V DC. This unwired model is designed to provide a reliable and compliant power supply for LED applications. CE, UKCA, RoHS certified and CL2 compliant, the T689CB.24V75 also includes CB certification. It offers Class 2 protection and features safety measures such as thermal protection and protection against short circuits, overvoltages and overloads. With an IP20 rating, it is ideal for indoor installations and does not support dimming. Suitable for residential and commercial environments, including kitchens, bathrooms, living rooms, bedrooms, and contract and HoReCa spaces, this power supply offers a robust and compliant solution for your LED lighting projects.

Dimensions

Length	170 mm
Width	44.5 mm
Thickness	28 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
T689CB.24V75	200~240V 50/60Hz	75W	24V DC		45°C	90°C

Technical data sheet

t689cb 24v75 datasheet

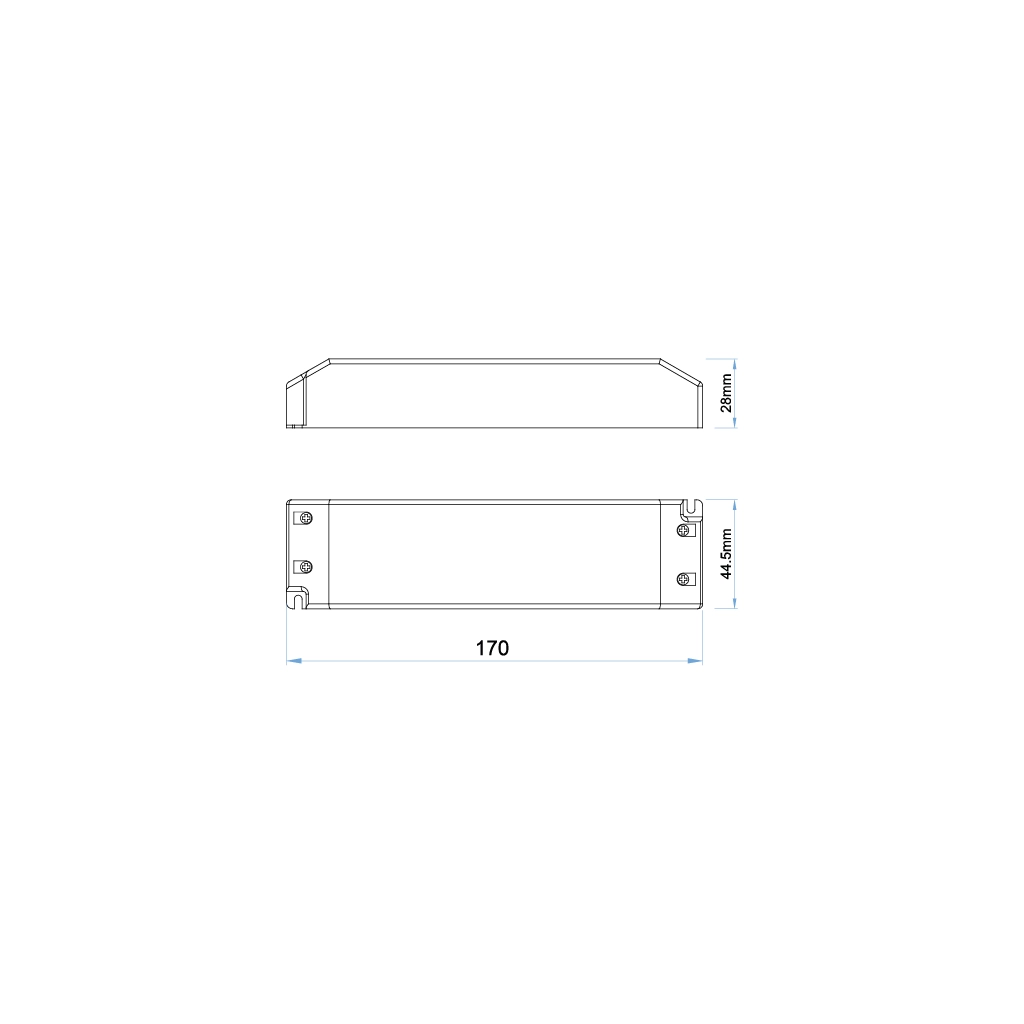

Technical drawing

t689cb 24v75 technical drawing
