k12led 75w12vba k12led 75w24vba voltage regulated power supply 75w 12v 24v 1

K12LED.75W12VBA | K12LED.75W24VBA

Voltage regulated power supply 75W 12V-24V DC

Power supplies

Wired voltage regulated power supply kit with European plug 75W 12V-24V DC

Wiring

Wired power supply

Certifications

Product details

More information
Download

Power supply K12LED.75W12VBA | K12LED.75W24VBA - 75W, 12V DC (constant voltage)

The K12LED.75W12VBA | K12LED.75W24VBA is a constant voltage power supply with a 75W power rating and 12V-24V DC output. Supplied with a European plug, this wired model is designed to provide reliable and safe power supply. CE, UKCA and RoHS certified and IP20 rated, the K84LED12.50W24VBA has short-circuit, overheating and overload protections. It is suitable for indoor installation and is not dimmable. Ideal for environments such as kitchens, bathrooms, living rooms and bedrooms, as well as contract and HoReCa spaces, this power supply is an ideal choice for your LED lighting needs.

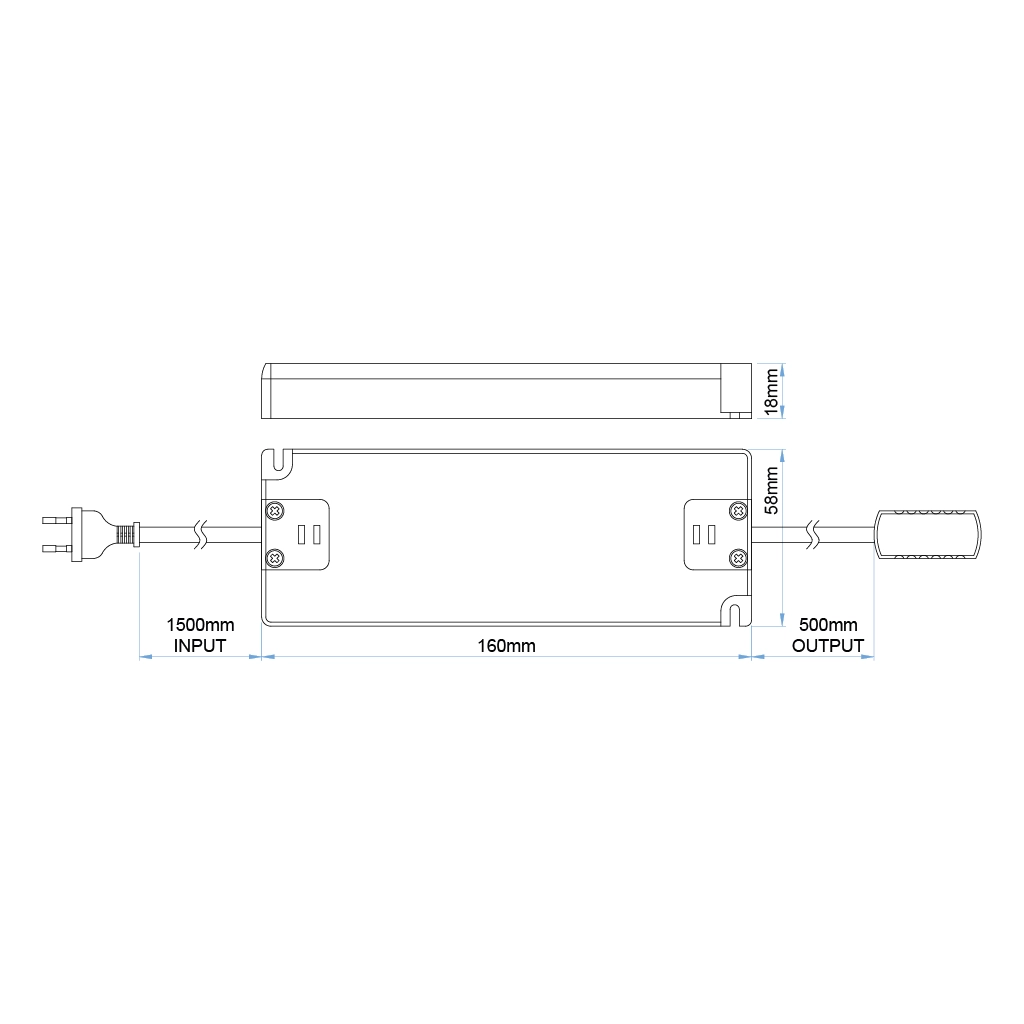

Dimensions

Length	160 mm
Width	58 mm
Thickness	18 mm

IP Rate

IP20

Product code	Power supply	Power	Output voltage	Output current	Ta	Tc
K12LED.75W12VBA	220~240V 50/60Hz	75W	12V DC		45°C	85°C
K12LED.75W24VBA	220~240V 50/60Hz	75W	24V DC		45°C	85°C
