t730 ignition four dimmer channels bluetooth commands 12v 24v 1

T730

Four-channel PMW dimmer with Bluetooth controls

Ignitions

Model T730 is a four-channel PMW dimmer with Bluetooth controls. Intended for constant voltage LED loads, such as - for example - LED strips or LED modules. The T730 module is powered at 12-24V DC, and the LED load is connected to the output.

Type

Wireless

Functionality

Remote control

Certifications

IP Rate

IP20

Product code	Input voltage	Power	Output voltage	Colour
T730	12V DC	72W	12V DC
T730	24V DC	144W	24V DC

Technical data sheet

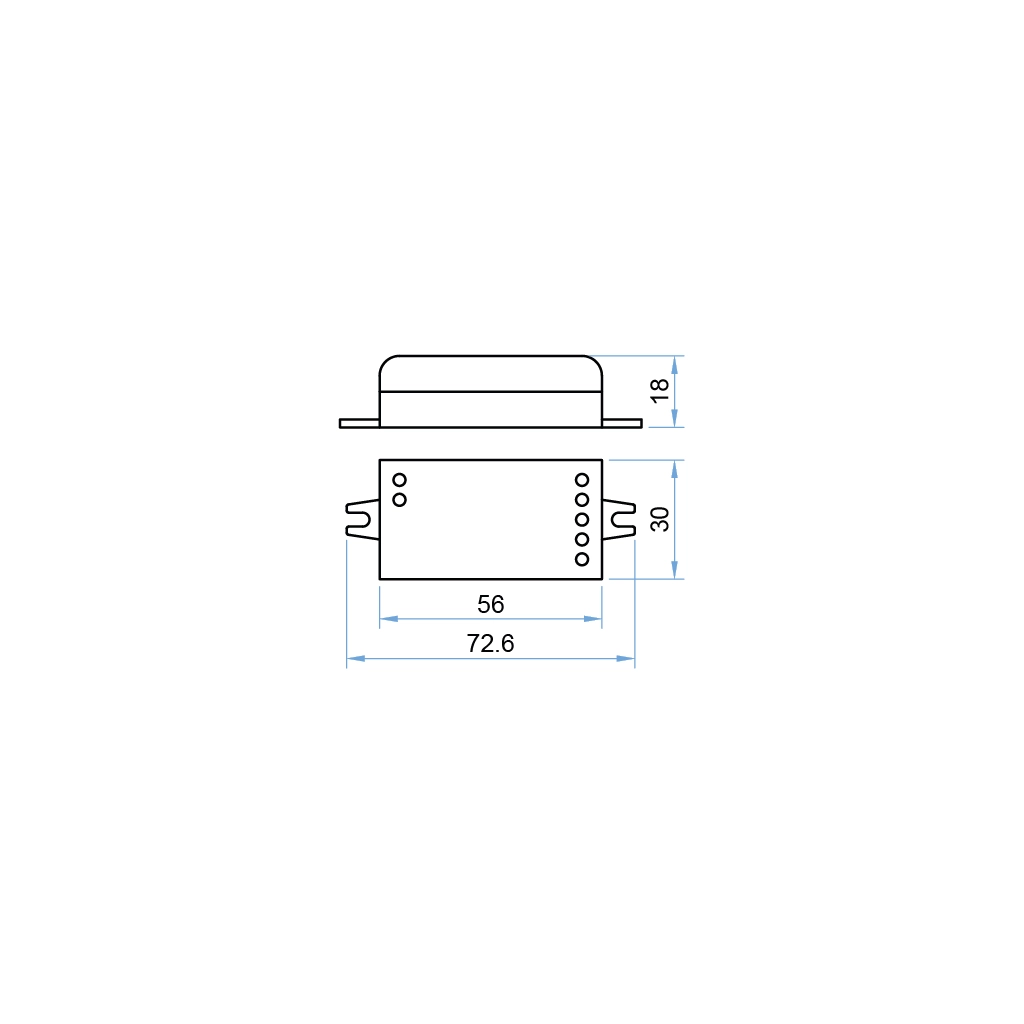

t730 technical drawing

Technical drawing

t730 technical drawing
